JAC-06-683

Power Line Filter Modules Overview

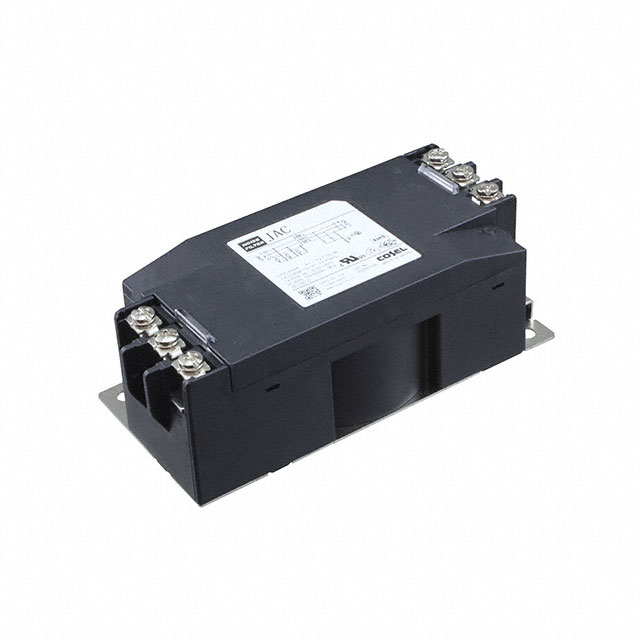

The Cosel JAC-06-683 is a three-phase (Wye) EMC/EMI power line filter rated for 500 VAC and 6 A. It features a two-stage filtering configuration designed to suppress electromagnetic interference in industrial power systems. The unit supports DIN rail mounting and utilizes terminal block termination. It operates within a temperature range of -40°C to +85°C and has a leakage current of 2.5 mA or 5 mA depending on the specific variant.

Power Line Filter Modules Feature Summary

• Two-stage EMI/EMC filtering architecture for enhanced noise suppression
• DIN rail mounting style for standardized industrial panel integration
• Terminal block termination for secure electrical connections

Power Line Filter Modules Applications

• Industrial machinery power conditioning
• Three-phase motor drive protection
• General purpose EMI suppression in AC power lines

Power Line Filter Modules Procurement Notes

Verify the exact leakage current specification (2.5 mA vs 5 mA) and termination type when ordering, as these parameters vary across the JAC series variants. Confirm that the DIN rail mounting style matches your enclosure requirements. Ensure the 500 VAC rating aligns with your system voltage. Cross-reference the datasheet for precise dimensional constraints before finalizing procurement.

Power Line Filter Modules Selection Notes

Select this component for applications requiring robust three-phase noise filtration at 6 A. The Wye configuration suits standard three-phase systems. Consider the two-stage design if higher attenuation is needed compared to single-stage filters. Verify compatibility with existing DIN rail profiles and ensure the operating temperature range meets environmental conditions.

Power Line Filter Modules Part Context

This part belongs to the Cosel JAC series of power line filters, which covers current ratings from 6 A to 30 A. The series offers both chassis and DIN rail mounting options. The JAC-06-683 specifically addresses lower current three-phase applications within this product family, providing a compact solution for EMI compliance in industrial environments.

Power Line Filter Modules Replacement Considerations

Check for direct substitutes within the Cosel JAC series with matching current ratings. Verify that alternative models maintain the same Wye configuration and two-stage topology. Ensure physical dimensions and mounting styles are compatible with existing installations before substituting.
