JANTX1N3042C-1/TR

Single Zener Diodes Overview

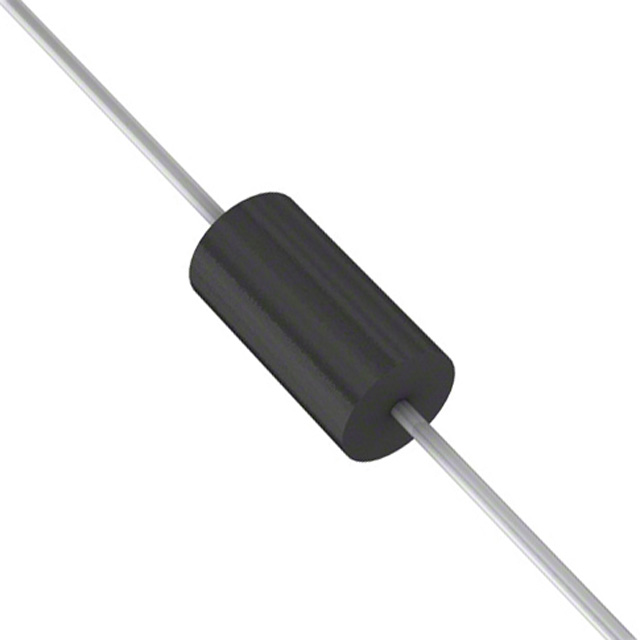

The JANTX1N3042C-1/TR is a unidirectional voltage regulator diode manufactured by Microchip Technology. It features an 82 V Zener voltage with a 2% tolerance and a 1 W power dissipation rating. The device utilizes a DO-202AA (DO-41) axial leaded package and is supplied in tape and reel format. It operates within a temperature range of -55°C to +175°C, ensuring reliability in demanding environments.

Single Zener Diodes Feature Summary

• Provides stable voltage regulation at 82 V with tight manufacturing tolerances
• Capable of handling 1 W power dissipation for robust performance
• Designed for high-temperature operation up to 175°C
• Supplied in tape and reel packaging for automated assembly

Single Zener Diodes Applications

• Voltage reference circuits requiring high stability
• Overvoltage protection in sensitive electronic systems
• Power supply regulation modules
• Military and aerospace electronic assemblies

Single Zener Diodes Procurement Notes

Verify the specific suffix configuration against the official datasheet to ensure compatibility with the required package style and testing standards. Confirm that the tape and reel quantity matches the production requirements. Ensure the component meets the necessary military or industrial specifications for the intended application environment.

Single Zener Diodes Selection Notes

Select this component when an 82 V regulation point is required with high precision. Consider the 1 W power rating for thermal management needs. The axial leaded package suits through-hole mounting processes. Verify the operating temperature range aligns with the system's environmental constraints.

Single Zener Diodes Part Context

This part belongs to the JANTX series of Zener diodes from Microchip Technology, designed for high-reliability applications. The series offers various voltage ratings and power dissipation levels. The JANTX1N3042C-1 variant specifically targets applications needing precise voltage regulation in harsh conditions.

Single Zener Diodes Replacement Considerations

Check for direct equivalents such as JANTX1N3042C or other manufacturers' 82V 1W Zener diodes in the DO-41 package. Ensure electrical parameters like voltage tolerance and power rating match exactly before substitution.
