JANTX1N6511

Diode Arrays Overview

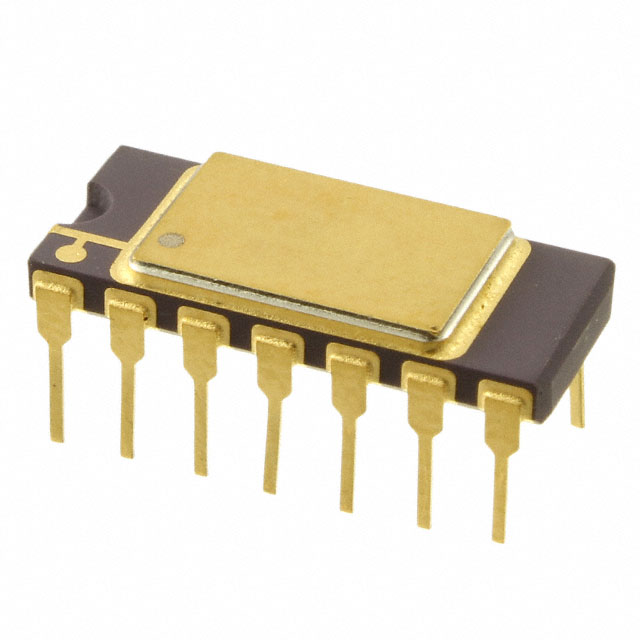

The JANTX1N6511 is a general-purpose diode array manufactured by Microchip Technology, designed for military and aerospace applications under the MIL-PRF-19500/4 series. This component features seven independent diodes housed in a 14-pin CDIP (Ceramic Dual In-Line Package) with axial leads. It supports a maximum repetitive peak reverse voltage of 75 V and provides a continuous forward current capacity of 300 mA. The device utilizes fast recovery technology to ensure efficient switching performance in high-reliability environments.

Diode Arrays Feature Summary

• Integrates seven independent diodes within a single ceramic package for space-efficient circuit design
• Engineered for fast recovery switching operations suitable for demanding electronic systems
• Constructed with robust ceramic dual in-line packaging to withstand harsh environmental conditions

Diode Arrays Applications

• Military-grade electronic systems requiring high reliability
• Aerospace circuits utilizing MIL-PRF-19500/4 compliant components
• General-purpose rectification in sensitive instrumentation

Diode Arrays Procurement Notes

Verify that the specific order matches the JANTX1N6511 designation to ensure correct military grade classification. Confirm the 14-pin CDIP package configuration aligns with board layout requirements. Check for any specific lot traceability documentation required for defense contracts. Ensure compatibility with existing thermal management strategies for through-hole mounting.

Diode Arrays Selection Notes

Select this component when multiple independent diode functions are needed in a compact form factor. The 75 V rating suits low-voltage signal processing or rectification tasks. Consider the 300 mA current limit for load requirements. The ceramic package offers superior thermal stability compared to plastic alternatives for extreme temperature ranges.

Diode Arrays Part Context

This part belongs to the JAN (Joint Army-Navy) and JANTX series, representing enhanced quality levels of standard military diodes. The JANTX suffix indicates tighter manufacturing tolerances than the base JAN version. It falls under the broader category of diode arrays used in critical infrastructure where failure is not an option.

Diode Arrays Replacement Considerations

Substitutes must match the 14-pin CDIP footprint and 75 V / 300 mA electrical ratings. Verify pinout compatibility for all seven diodes. Ensure the replacement also meets MIL-PRF-19500/4 standards if military certification is mandatory.
