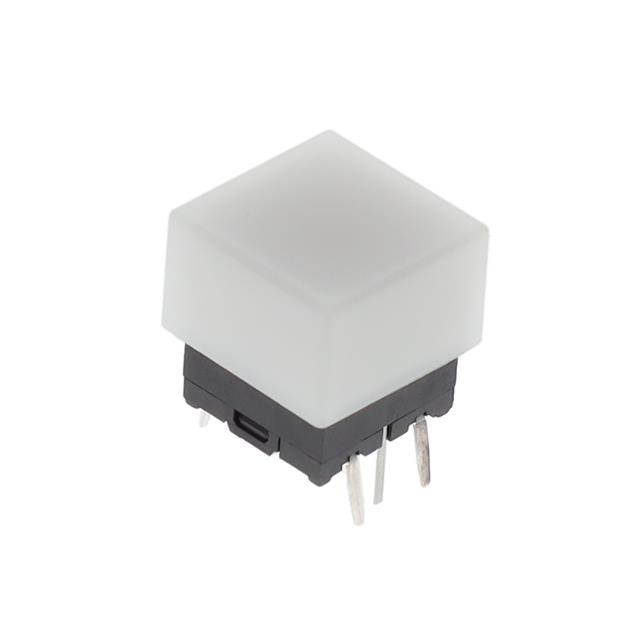

JB15LPC-B is listed in the Tactile Switches range at ChipApex. The manufacturer field lists NKK Switches. Its product description is SWITCH TACTILE SPST-NO 0.05A 24V. Review the specifications below when checking this part for your BOM.
Tactile Switches specifications for JB15LPC-B
- Description：SWITCH TACTILE SPST-NO 0.05A 24V
- Series：JB
- Mfr：NKK Switches
- Package：Box,Box
- Circuit：SPST-NO
- Switch Function：Off-Mom
- Contact Rating @ Voltage：0.05A @ 24VDC
- Actuator Type：Square Button
- Mounting Type：Through Hole
- Actuator Height off PCB, Vertical：11.20mm
- Actuator Length, Right Angle：-
- Actuator Orientation：Top Actuated
- Termination Style：PC Pin
- Outline：10.00mm x 10.00mm
- Illumination：Illuminated
- Illumination Type, Color：LED, Red
- Illumination Voltage (Nominal)：1.8 VDC
- Operating Force：176gf
- Ingress Protection：IP67 - Dust Tight, Waterproof
- Features：Process Sealed
- Operating Temperature：-25°C ~ 70°C
Tactile Switches datasheet and documents for JB15LPC-B
