JB28B0010

Overview

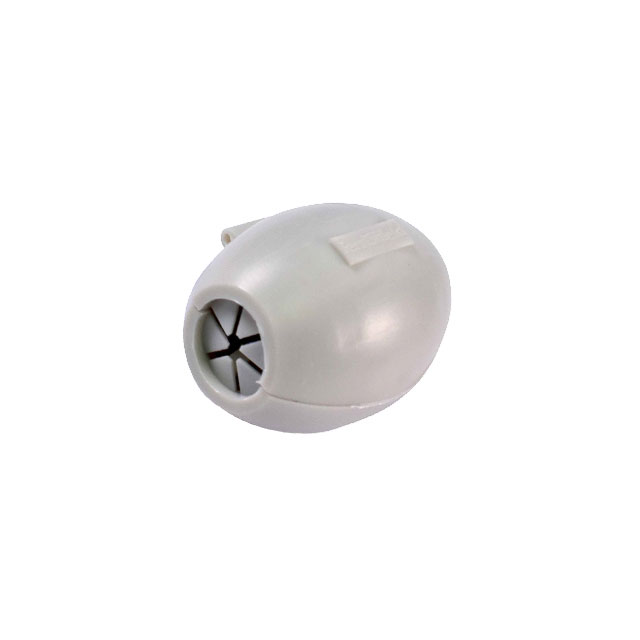

The JB28B0010 is a hinged ferrite core manufactured by Leader Tech Inc., designed for cable bundle applications. It features a snap-on installation type and operates with an impedance of 160 Ohms at 100MHz. The component utilizes material grade 28 and is classified as a free-hanging unit. Physical dimensions include an inner diameter of 7.40mm (0.291 inches) and an outer diameter of 17.00mm (0.669 inches). The length measures 0.819 inches (20.80mm).

Feature Summary

• Hinged snap-on design allows for easy installation around existing cables without disconnection.
• Provides high impedance filtering to suppress electromagnetic interference in cable bundles.
• Free-hanging configuration enables flexible mounting options on wires or harnesses.

Applications

• Suppression of electromagnetic interference in electronic cable assemblies.
• Filtering noise in communication peripheral connections.
• EMI mitigation in human-machine interface wiring.

Procurement Notes

Verify the specific impedance value and physical dimensions against your system requirements before ordering. Confirm that the hinged mechanism is compatible with the target cable diameter. Check for RoHS compliance status if required by your manufacturing standards. Ensure the supplier provides authentic components from Leader Tech Inc. to guarantee performance reliability.

Selection Notes

Select this component when a non-invasive solution for cable noise suppression is required. The hinged design is suitable for retrofitting or applications where cable removal is impractical. Consider the 160 Ohm impedance rating at 100MHz to ensure effective attenuation for the targeted frequency range. Verify that the inner diameter accommodates the maximum cable bundle size.

Part Context

This part belongs to the Leader Tech Inc. ferrite core product line, specifically within the category of cable ferrites. It is engineered for EMI shielding and signal integrity improvement in electronic systems. The manufacturer specializes in shielding solutions for circuit boards and enclosures, providing robust components for industrial and commercial electronics.

Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Evaluate other hinged ferrite cores with similar impedance ratings and dimensional constraints if replacement is necessary.

FAQ

What is the impedance of the JB28B0010 at 100MHz?

The impedance is 160 Ohms at 100MHz.

How is the JB28B0010 installed?

It uses a hinged snap-on design for free-hanging installation around cables.
