JCB019L

Overview

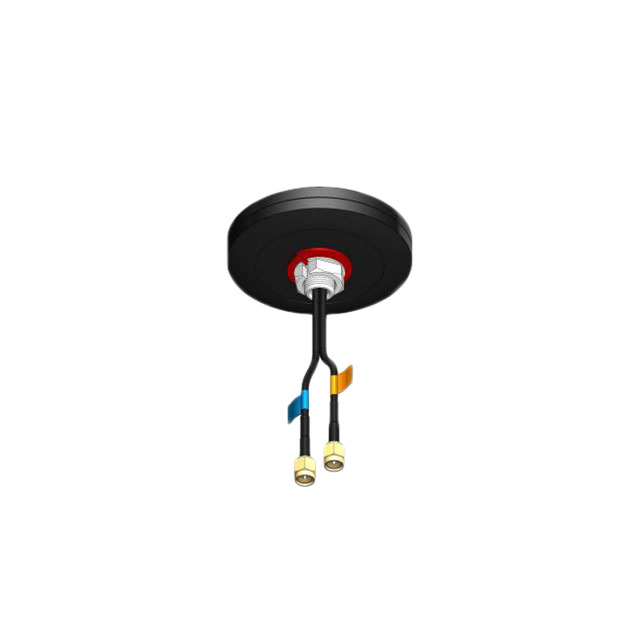

The JCB019L is a screw-mounting puck GPS and LTE combination antenna manufactured by JC Antenna. It supports multiple systems and frequency bands, specifically operating at the GPS frequency range of 1575.42±3MHz with Right-Hand Circular Polarization (RHCP). The antenna provides a gain of 2dBic at zenith and maintains a Voltage Standing Wave Ratio (V.S.W.R.) of less than 1.5. It features a standard impedance and is designed to operate reliably in temperatures ranging from -40°C.

Feature Summary

• Combines GPS and LTE connectivity in a single puck-style unit
• Utilizes screw mounting for secure installation
• Supports multiple GNSS systems and frequency bands

Applications

• IoT devices requiring combined positioning and cellular data
• Vehicle tracking systems
• Telematics units

Procurement Notes

Verify the specific connector type and cable length requirements against your system interface before ordering. Confirm that the screw mounting dimensions align with your chassis design. Ensure the environmental temperature rating meets your operational conditions. Check for any specific regulatory certifications required for your target market.

Selection Notes

Select this model when both precise satellite positioning and long-term evolution cellular communication are needed in a compact form factor. The puck design suits applications where low profile and robust mounting are priorities. Consider the 2dBic gain and V.S.W.R. specifications for signal integrity needs.

Part Context

JC Antenna specializes in RF solutions for IoT and industrial applications. The JCB series includes various combination antennas integrating GNSS with cellular technologies like GSM and LTE. This product line addresses the demand for integrated connectivity in mobile and stationary assets.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer for direct equivalents or updated models within the JCB series.
