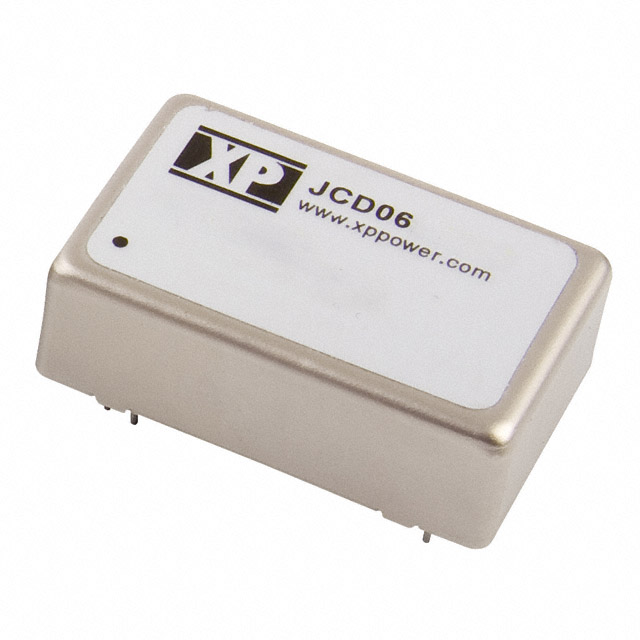

JCD0605S12 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists XP Power. Its product description is DC DC CONVERTER 12V 6W. Review the specifications below when checking this part for your BOM.
DC DC Converters specifications for JCD0605S12
- Description：DC DC CONVERTER 12V 6W
- Series：JCD (6W)
- Mfr：XP Power
- Package：Tube
- Type：Isolated Module
- Number of Outputs：1
- Voltage - Input (Min)：4.5V
- Voltage - Input (Max)：9V
- Voltage - Output 1：12V
- Voltage - Output 2：-
- Voltage - Output 3：-
- Voltage - Output 4：-
- Current - Output (Max)：500mA
- Power (Watts)：6 W
- Voltage - Isolation：1.6 kV
- Applications：ITE (Commercial)
- Features：OCP, OVP, SCP
- Operating Temperature：-40°C ~ 100°C
- Efficiency：83%
- Mounting Type：Through Hole
- Package / Case：24-DIP Module, 7 Leads
- Size / Dimension：1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm)
- Supplier Device Package：-
- Control Features：-
- Standard Number：62368-1
DC DC Converters datasheet and documents for JCD0605S12
