JCD824

Overview

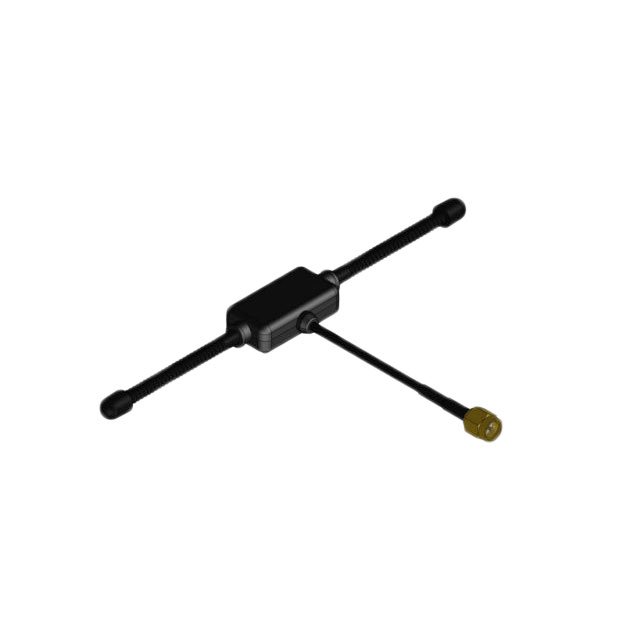

The JCD824 is a high-quality FM dipole antenna manufactured by JC Antenna, designed for RF applications. It operates at a center frequency of 433 MHz with a bandwidth supporting the 433 MHz band. The antenna features a gain of 3dBi and maintains a standard impedance of 50Ω. It utilizes linear polarization to ensure effective signal transmission. This component is specifically engineered for compatibility with LoRa and LPWAN systems, providing reliable performance in wireless communication setups requiring stable dipole characteristics.

Feature Summary

• High-quality FM dipole construction optimized for RF signal integrity
• Linear polarization design ensuring consistent directional performance
• Engineered specifically for integration with LoRa and LPWAN protocols

Applications

• LoRa network implementations
• LPWAN system deployments
• RF communication modules operating at 433 MHz

Procurement Notes

Verify the specific connector type and mounting configuration required for your application before ordering. Confirm that the 50Ω impedance matches your system requirements. Ensure the 433 MHz frequency aligns with local regulatory standards for your region. Check datasheet details for environmental ratings if outdoor installation is planned. Validate mechanical dimensions against your enclosure or mounting constraints.

Selection Notes

Select this model when a dipole form factor is required for 433 MHz operations. Consider the 3dBi gain as sufficient for moderate range applications. Evaluate the linear polarization against your deployment geometry. Compare against other JC Antenna models if different frequencies or gain levels are needed. Ensure compatibility with existing LoRa/LPWAN infrastructure.

Part Context

JC Antenna specializes in RF antennas including GPS, GLONASS, BEIDOU, and communication solutions. The company provides custom GNSS, 4G/5G, and WiFi options for IoT and Internet of Vehicles markets. The JCD824 fits within their portfolio of specialized antennas for wireless data transmission.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult JC Antenna directly for equivalent models if this specific part is unavailable.
