JCE604LMWM4

Overview

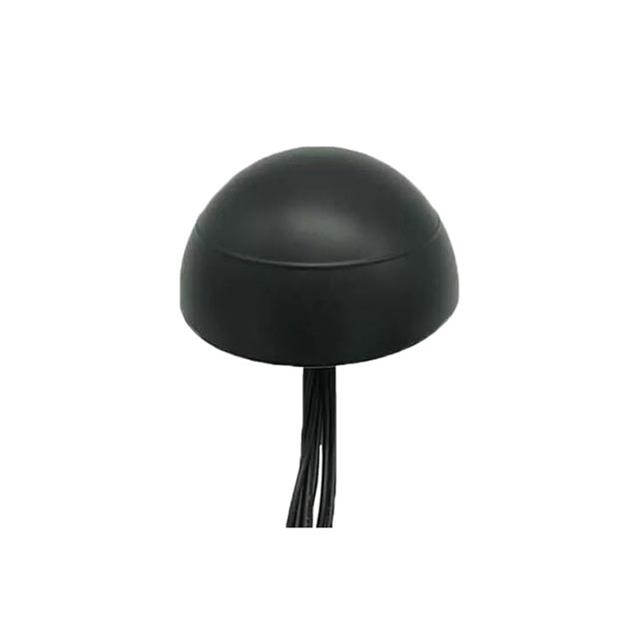

The JCE604LMWM4 is a multi-band combined antenna manufactured by JC Antenna, designed for rugged outdoor applications with an IP67-rated ABS enclosure. It integrates GNSS (GPS and GLONASS) reception in the 1575.42–1610 MHz range, dual LTE MIMO support, and four WiFi MIMO ports covering 2400–2483.5 MHz and 4900–5825 MHz. The unit features right-hand circular polarization for GNSS, a 50Ω impedance, and a VSWR of less than 2.5. Mechanical specifications include a 25x25x6mm dimension, RG174 cable, and screw mounting.

Feature Summary

• Integrates seven distinct radio functions into a single compact unit, combining GNSS, dual LTE MIMO, and four WiFi MIMO ports.
• Constructed with a rugged IP67-rated ABS radome to ensure reliable operation in harsh outdoor environments.
• Supports Right-Hand Circular Polarization (RHCP) for optimal GPS and GLONASS signal reception.

Applications

• Outdoor IoT gateways requiring integrated connectivity
• Smart city infrastructure nodes
• Industrial remote monitoring stations

Procurement Notes

Verify that the specific order includes the correct connector type, as datasheets indicate SMA or other options may be available. Confirm the cable length requirements match the installation site. Ensure the mounting surface is compatible with the specified screw method. Cross-reference the frequency bands with local regulatory requirements before deployment.

Selection Notes

Select this model when space constraints require consolidating multiple antennas into one housing. It is suitable for deployments needing simultaneous GNSS positioning and high-throughput data transmission via LTE and WiFi. Consider the IP67 rating if the installation location is exposed to weather elements without additional sheltering.

Part Context

This component belongs to the JC Antenna portfolio of multi-band solutions. It addresses the market demand for simplified installations in IoT and industrial sectors by reducing the number of external components needed for comprehensive wireless communication and positioning.

Replacement Considerations

No public substitute part numbers are documented for this specific configuration. Verify compatibility with existing RF interfaces and mounting hardware when sourcing alternatives.

FAQ

What is the polarization type for the GNSS section?

The GNSS section utilizes Right-Hand Circular Polarization (RHCP).

What is the environmental protection rating of the enclosure?

The antenna features an IP67-rated enclosure suitable for outdoor use.
