JCG015KZW

Overview

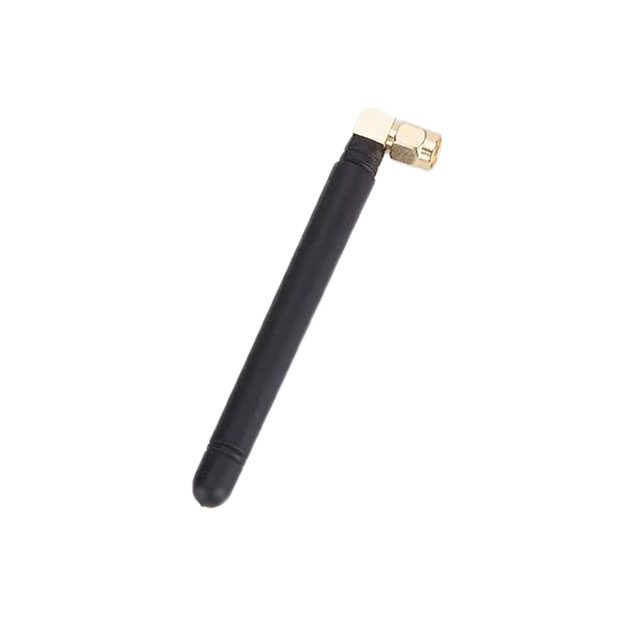

The JCG015KZW is a quad-band GSM/3G whip antenna manufactured by JC Antenna. It features a hinged design with an SMA male connector for flexible installation. The device supports multiple frequency ranges, including 824–960 MHz and 1710–2170 MHz, or 880–960 MHz and 1710–2170 MHz. Gain specifications vary between 2 dBi at zenith and 3 dBi depending on the specific datasheet reference. The antenna utilizes linear polarization and is constructed for robust outdoor or industrial use.

Feature Summary

• Quad-band support for GSM and 3G networks
• Hinged mechanical design for adjustable orientation
• SMA male connector interface

Applications

• GSM network base stations
• 3G communication systems
• IoT connectivity modules

Procurement Notes

Verify the exact frequency range variant required, as documentation indicates options for 824–960 MHz or 880–960 MHz bands alongside the 1710–2170 MHz band. Confirm gain requirements against specific datasheet versions citing either 2 dBi or 3 dBi. Ensure the SMA male connector matches the receiving equipment interface. Validate manufacturer authenticity through authorized distributors to guarantee component integrity.

Selection Notes

Select this model when multi-band GSM and 3G coverage is necessary in a single unit. The hinged structure allows for precise directional alignment relative to the signal source. Consider the physical dimensions and mounting constraints associated with the hinge mechanism. Verify that the operating temperature range meets environmental conditions if deployed outdoors.

Part Context

JC Antenna specializes in RF solutions for IoT and cellular communications. The JCG015KZW belongs to their line of external antennas designed for reliable signal transmission in mobile and fixed wireless applications. This component serves as a critical interface for connecting radio frequency modules to external signal paths.

Replacement Considerations

No public substitute part numbers are confirmed in available documentation.
