JCN504

Overview

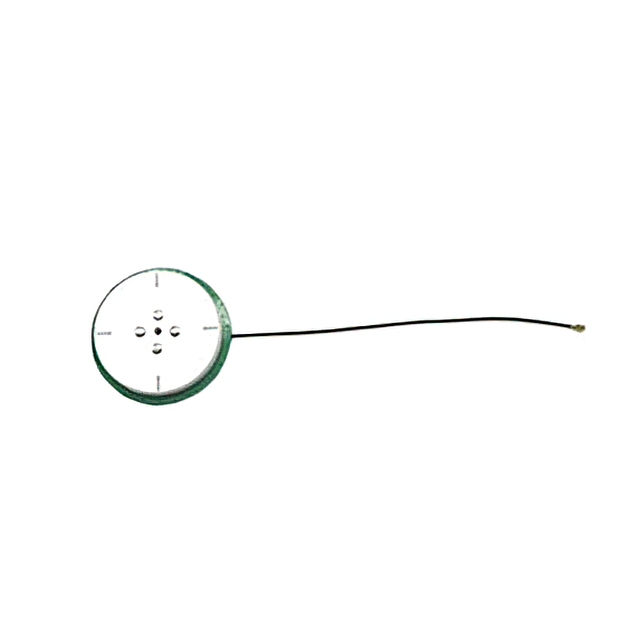

The JCN504 is a high-accuracy GNSS internal active antenna manufactured by JC Antenna. It operates within the frequency range of 1561.098 to 1602 MHz, supporting Right-Hand Circular Polarization (RHCP). The component provides a gain of 3dBic at zenith relative to the PCB and maintains a Voltage Standing Wave Ratio (V.S.W.R.) of less than 1.5. It features a standard 50Ω impedance, ensuring compatibility with typical RF receiver interfaces for precise positioning applications.

Feature Summary

• Designed as an internal active antenna for high-accuracy GNSS signal reception
• Supports Right-Hand Circular Polarization (RHCP) for optimal satellite signal capture
• Engineered for low voltage standing wave ratio to ensure efficient power transfer

Applications

• GNSS positioning modules requiring high accuracy
• Internal integration in navigation devices
• IoT equipment utilizing satellite positioning data

Procurement Notes

Verify the specific part number suffix against official JC Antenna documentation to confirm exact electrical characteristics and pinout configurations. Ensure that the procurement source provides genuine components with valid date codes. Cross-reference the datasheet specifications regarding operating temperature and supply voltage requirements before finalizing orders to prevent integration issues.

Selection Notes

Select this model when integrating GNSS capabilities into compact devices requiring internal antenna solutions. The 50Ω impedance and RHCP polarization are critical for matching standard receiver front-ends. Consider the physical dimensions and mounting requirements specified in the mechanical drawings to ensure proper fit within the target enclosure without obstructing signal reception.

Part Context

JC Antenna specializes in GNSS, communication, and radio antennas. The JCN504 belongs to their portfolio of high-accuracy active antennas designed for IoT and navigation markets. This product line emphasizes precision signal acquisition for global navigation satellite systems, catering to industries demanding reliable positioning data in embedded applications.

Replacement Considerations

Publicly confirmed substitute part numbers for the JCN504 are not available in the provided documentation. Verify compatibility with alternative models by comparing frequency ranges, gain specifications, and interface definitions directly with manufacturer datasheets.
