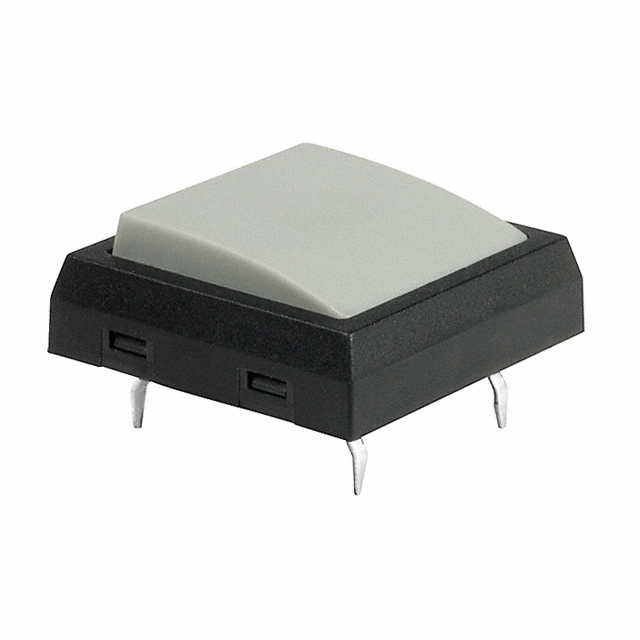

JF15SP4H is listed in the Tactile Switches range at ChipApex. The manufacturer field lists NKK Switches. Its product description is SWITCH TACTILE SPST-NO 0.05A 24V. Review the specifications below when checking this part for your BOM.
Tactile Switches specifications for JF15SP4H
- Description：SWITCH TACTILE SPST-NO 0.05A 24V
- Series：JF
- Mfr：NKK Switches
- Package：Tray,Tray
- Circuit：SPST-NO
- Switch Function：Off-Mom
- Contact Rating @ Voltage：0.05A @ 24VDC
- Actuator Type：Square Button
- Mounting Type：Through Hole
- Actuator Height off PCB, Vertical：6.98mm
- Actuator Length, Right Angle：-
- Actuator Orientation：Top Actuated
- Termination Style：PC Pin
- Outline：17.70mm x 17.70mm
- Illumination：Non-Illuminated
- Illumination Type, Color：-
- Illumination Voltage (Nominal)：-
- Operating Force：200gf
- Ingress Protection：-
- Features：Process Sealed
- Operating Temperature：-25°C ~ 85°C
Tactile Switches datasheet and documents for JF15SP4H
