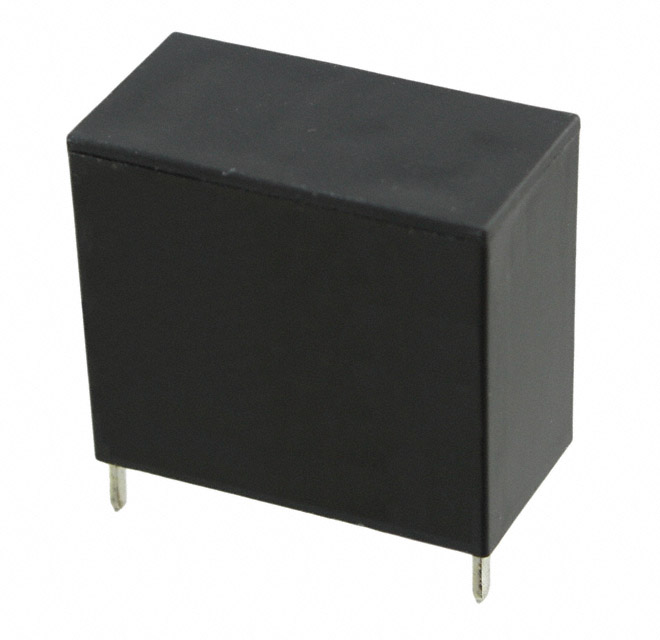

Power Relays, Over 2 Amps JM1AN-ZTMP-DC12V-F product image

JM1AN-ZTMP-DC12V-F

Description：RELAY GEN PURPOSE SPST 20A 12V
Series：JM
Mfr：Panasonic Electric Works
Package：Box

SKU:f9f332b4dad8 Category: Power Relays, Over 2 Amps Brand: Panasonic Electric Works

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

JM1AN-ZTMP-DC12V-F is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Panasonic Electric Works. Its product description is RELAY GEN PURPOSE SPST 20A 12V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for JM1AN-ZTMP-DC12V-F

Description：RELAY GEN PURPOSE SPST 20A 12V
Series：JM
Mfr：Panasonic Electric Works
Package：Box
Mounting Type：Chassis Mount
Coil Voltage：12VDC
Contact Form：SPST-NO (1 Form A)
Contact Rating (Current)：20 A
Switching Voltage：250VAC - Max
Load - Max Switching：5000VA
Coil Current：75 mA
Coil Type：Non Latching
Features：-
Termination Style：Quick Connect - 0.250" (6.3mm)
Seal Rating：Sealed - Flux Protection
Coil Insulation：-
Must Operate Voltage：8.4 VDC
Must Release Voltage：1.2 VDC
Operating Temperature：-40°C ~ 60°C
Contact Material：Silver Alloy
Approval Agency：CSA, TUV, UR, VDE
Relay Type：General Purpose
Grade：-
Qualification：-
Operate Time：20 ms
Release Time：10 ms

Power Relays, Over 2 Amps datasheet and documents for JM1AN-ZTMP-DC12V-F

JM1AN-ZTMP-DC12V-F
