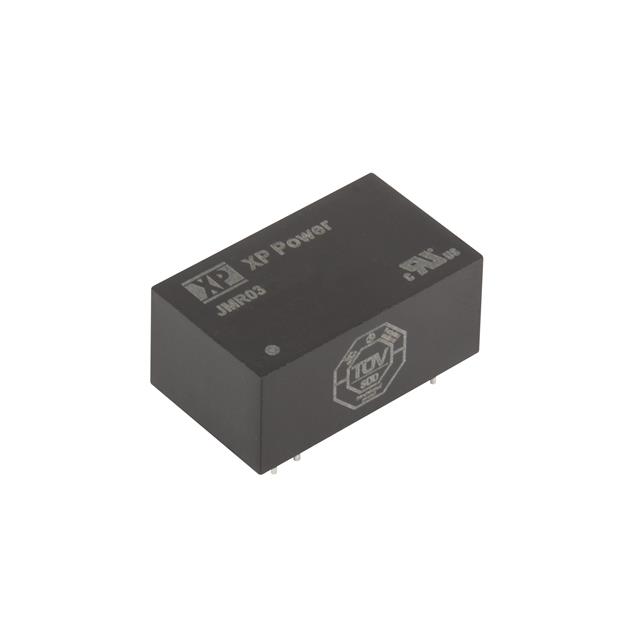

JMR0348D15

JMR0348D15 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists XP Power. Its product description is DC/DC CONVERTER 15V 3.5W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for JMR0348D15

• Description：DC/DC CONVERTER 15V 3.5W
• Series：JMR03 (3.5W)
• Mfr：XP Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：75V
• Voltage - Output 1：15V
• Voltage - Output 2：-15V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：117mA, 117mA
• Power (Watts)：3.5 W
• Voltage - Isolation：5 kV
• Applications：ITE (Commercial), Medical
• Features：Remote On/Off
• Operating Temperature：-40°C ~ 90°C (With Derating)
• Efficiency：81%
• Mounting Type：Through Hole
• Package / Case：16-DIP Module, 6 Leads
• Size / Dimension：0.96" L x 0.58" W x 0.43" H (24.4mm x 14.7mm x 10.8mm)
• Supplier Device Package：-
• Control Features：Enable, Active High
• Approval Agency：CB, CE, CSA, TUV, UKCA, UL
• Standard Number：60601-1; 62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for JMR0348D15
