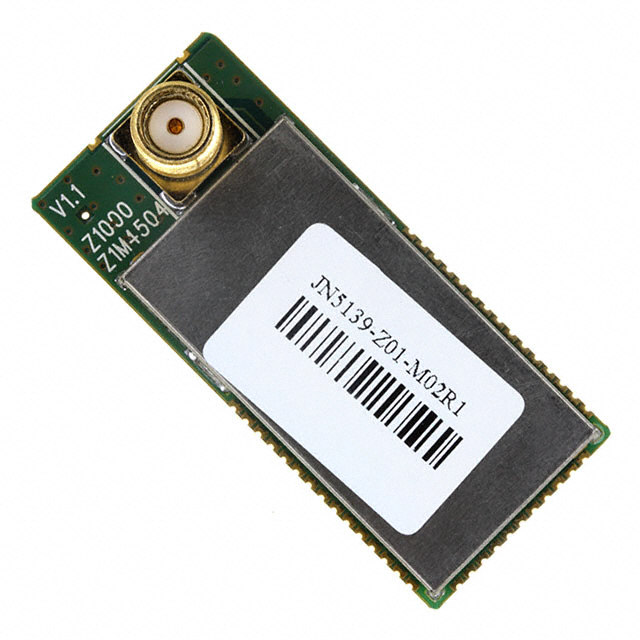

JN5139-Z01-M/02R1V

JN5139-Z01-M/02R1V

  • Description：RF TXRX MODULE 802.15.4SMA SMD
  • Series：JN5139-Z01-M0x
  • Mfr：NXP USA Inc.
  • Package：Tape & Reel (TR)

SKU:ebec061d12e8 Category: Brand:

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

Product Detailed Parameters

  • Description：RF TXRX MODULE 802.15.4SMA SMD
  • Series：JN5139-Z01-M0x
  • Mfr：NXP USA Inc.
  • Package：Tape & Reel (TR)
  • RF Family/Standard：802.15.4
  • Protocol：Zigbee®
  • Modulation：-
  • Frequency：2.4GHz
  • Data Rate：-
  • Power - Output：19dBm
  • Sensitivity：-100dBm
  • Serial Interfaces：I2C, SPI, UART
  • Antenna Type：Antenna Not Included, SMA
  • Utilized IC / Part：-
  • Memory Size：192kB ROM, 96kB RAM
  • Voltage - Supply：2.2V ~ 3.6V
  • Current - Receiving：45mA
  • Current - Transmitting：125mA
  • Mounting Type：Surface Mount
  • Operating Temperature：-40°C ~ 85°C
  • Package / Case：Module
