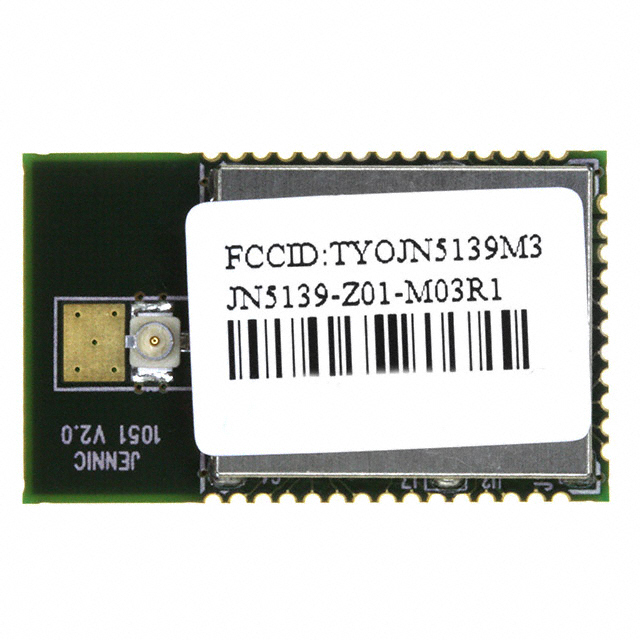

JN5139-Z01-M/03R1T

JN5139-Z01-M/03R1T

$32.63
  • Description：RF TXRX MODULE 802.15.4U.FL SMD
  • Series：JN5139-Z01-M0x
  • Mfr：NXP USA Inc.
  • Package：Tape & Reel (TR),Cut Tape (CT)

SKU:1b3b3cf70b7b Category: Brand:

　　
  • Quantity
    • -
    • +
    • 　　　
ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

Product Detailed Parameters

  • Description：RF TXRX MODULE 802.15.4U.FL SMD
  • Series：JN5139-Z01-M0x
  • Mfr：NXP USA Inc.
  • Package：Tape & Reel (TR),Cut Tape (CT)
  • RF Family/Standard：802.15.4
  • Protocol：Zigbee®
  • Modulation：-
  • Frequency：2.4GHz
  • Data Rate：-
  • Power - Output：2.5dBm
  • Sensitivity：-96dBm
  • Serial Interfaces：I2C, SPI, UART
  • Antenna Type：Antenna Not Included, U.FL
  • Utilized IC / Part：-
  • Memory Size：192kB ROM, 96kB RAM
  • Voltage - Supply：2.2V ~ 3.6V
  • Current - Receiving：37mA
  • Current - Transmitting：37mA
  • Mounting Type：Surface Mount
  • Operating Temperature：-40°C ~ 85°C
  • Package / Case：Module

Download product information
