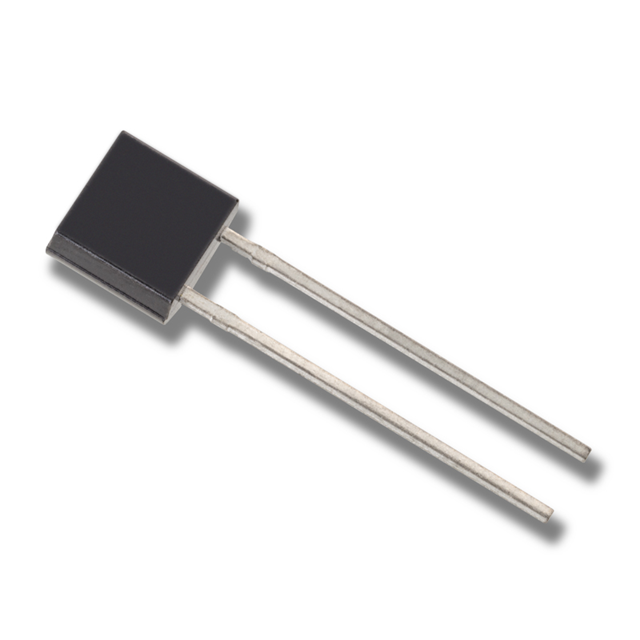

JPAD100 TO-92 2L ROHS

$4.69

Description：DIODE STANDARD 35V 10MA TO92
Series：PAD
Mfr：Linear Integrated Systems, Inc.
Package：Bulk

SKU:82cfd8a848a6 Category: Single Diodes Brand: Linear Integrated Systems, Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

JPAD100 TO-92 2L ROHS is listed in the Single Diodes range at ChipApex. The manufacturer field lists Linear Integrated Systems, Inc.. Its product description is DIODE STANDARD 35V 10MA TO92. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for JPAD100 TO-92 2L ROHS

Description：DIODE STANDARD 35V 10MA TO92
Series：PAD
Mfr：Linear Integrated Systems, Inc.
Package：Bulk
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：35 V
Current - Average Rectified (Io)：10mA
Voltage - Forward (Vf) (Max) @ If：1.5 V @ 5 mA
Speed：Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：100 pA @ 20 V
Capacitance @ Vr, F：1.5pF @ 5V, 1MHz
Mounting Type：Through Hole
Package / Case：TO-226-2, TO-92-2 (TO-226AC)
Supplier Device Package：TO-92
Operating Temperature - Junction：-55°C ~ 150°C
Grade：-
Qualification：-

Single Diodes datasheet and documents for JPAD100 TO-92 2L ROHS

JPAD100 TO-92 2L ROHS

Single Diodes Overview

The JPAD100 is a Pico Ampere Diode from the PAD Series manufactured by Linear Integrated Systems. It serves as a direct replacement for Siliconix components, featuring a reverse breakdown voltage (BVR) of -35V and a maximum reverse leakage current (IR) of -100pA at -20V. The device exhibits a typical forward voltage (VF) of 1.5V at 5mA and a total reverse capacitance (Crss) of 2pF. It operates within a junction temperature range of -55°C to +150°C with a continuous power dissipation of 300mW.

Single Diodes Feature Summary

Direct replacement for Siliconix PAD series discrete components
Ultra-low reverse leakage current in the picoampere range
Low total reverse capacitance for high-frequency signal integrity
High reverse breakdown voltage capability

Single Diodes Applications

Operational amplifier input differential voltage limiting
Sample and hold circuit offset voltage reduction
Precision instrumentation requiring low leakage protection

Single Diodes Procurement Notes

Verify that the specific ordering suffix matches the required package type, such as TO-72 or SOT-23, as the base model number may not specify the physical footprint. Confirm RoHS compliance status directly with the manufacturer documentation before finalizing procurement specifications.

Single Diodes Selection Notes

Select this component when ultra-low leakage is critical for maintaining signal accuracy in precision analog circuits. Ensure the operating voltage remains below the -35V reverse breakdown rating. Consider the thermal derating requirements if ambient temperatures exceed 25°C to maintain safe power dissipation levels.

Single Diodes Part Context

Linear Integrated Systems specializes in high-quality discrete components developed through expertise from Amelco, Union Carbide, Intersil, and Micro Power Systems. The company provides replacements for discontinued small signal discretes across various markets including medical electronics and test & measurement.
