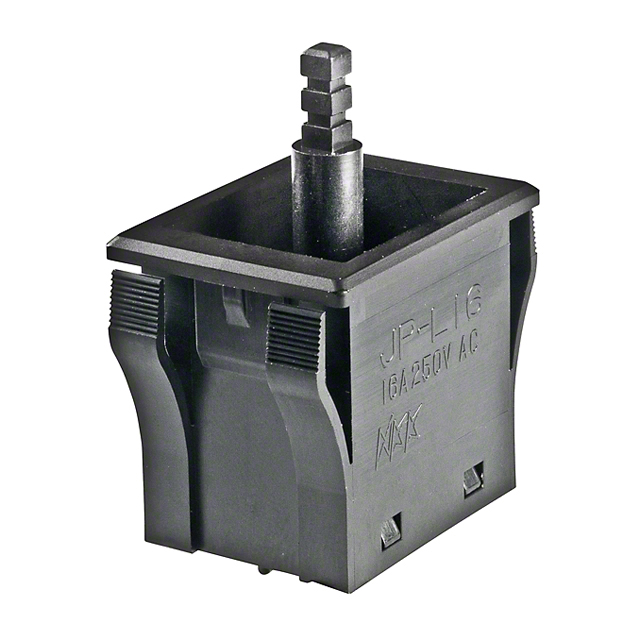

JPL16P

JPL16P is listed in the Pushbutton Switches range at ChipApex. The manufacturer field lists NKK Switches. Its product description is SWITCH PUSH SPST 16A 125V. Review the specifications below when checking this part for your BOM.

Pushbutton Switches specifications for JPL16P

• Description：SWITCH PUSH SPST 16A 125V
• Series：JP
• Mfr：NKK Switches
• Package：Bulk
• Mounting Type：Panel Mount, Snap-In
• Type：Standard
• Circuit：SPST
• Switch Function：Off-On
• Current Rating (Amps)：16A (AC)
• Actuator Type：Plunger for Cap
• Actuator Marking：No Marking
• Color - Actuator/Cap：-
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Termination Style：Solder Lug
• Ingress Protection：-
• Features：Tactile Feedback
• Panel Cutout Dimensions：Rectangular - 28.00mm x 21.20mm
• Operating Temperature：-10°C ~ 70°C
• Voltage Rating - DC：-
• Voltage Rating - AC：125 V

Pushbutton Switches datasheet and documents for JPL16P
