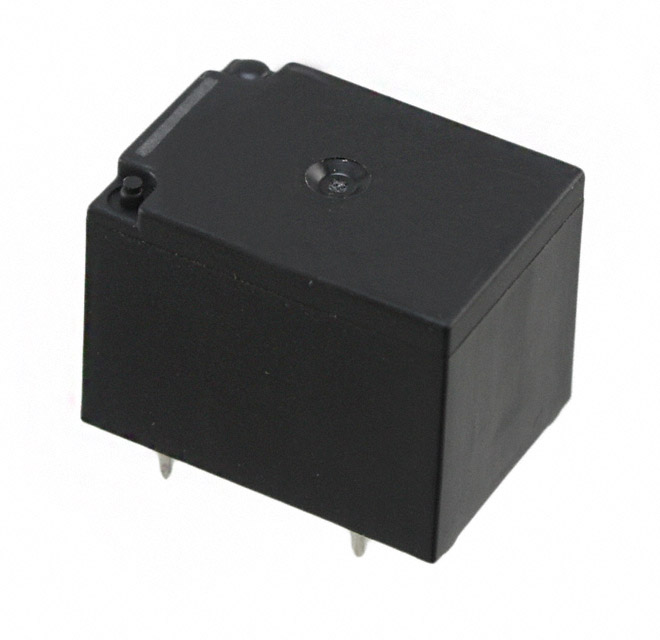

Power Relays, Over 2 Amps JS1A-5V product image

JS1A-5V

Description：RELAY GEN PURPOSE SPST 10A 5V
Series：JS
Mfr：Panasonic Electric Works
Package：Bulk

SKU:8448f08c7bec Category: Power Relays, Over 2 Amps Brand: Panasonic Electric Works

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

JS1A-5V is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Panasonic Electric Works. Its product description is RELAY GEN PURPOSE SPST 10A 5V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for JS1A-5V

Description：RELAY GEN PURPOSE SPST 10A 5V
Series：JS
Mfr：Panasonic Electric Works
Package：Bulk
Mounting Type：Through Hole
Coil Voltage：5VDC
Contact Form：SPST-NO (1 Form A)
Contact Rating (Current)：10:00 AM
Switching Voltage：250VAC, 100VDC - Max
Load - Max Switching：2500VA, 1000W
Coil Current：72 mA
Coil Type：Non Latching
Features：-
Termination Style：PC Pin
Seal Rating：Sealed - Fully
Coil Insulation：Class E
Must Operate Voltage：3.5 VDC
Must Release Voltage：0.5 VDC
Operating Temperature：-40°C ~ 70°C
Contact Material：Silver Alloy
Approval Agency：CSA, TUV, UR, VDE
Relay Type：General Purpose
Grade：-
Qualification：-
Operate Time：10 ms
Release Time：10 ms

Power Relays, Over 2 Amps datasheet and documents for JS1A-5V
