K-F-12.000M-12-3030-4085-80

Crystals Overview

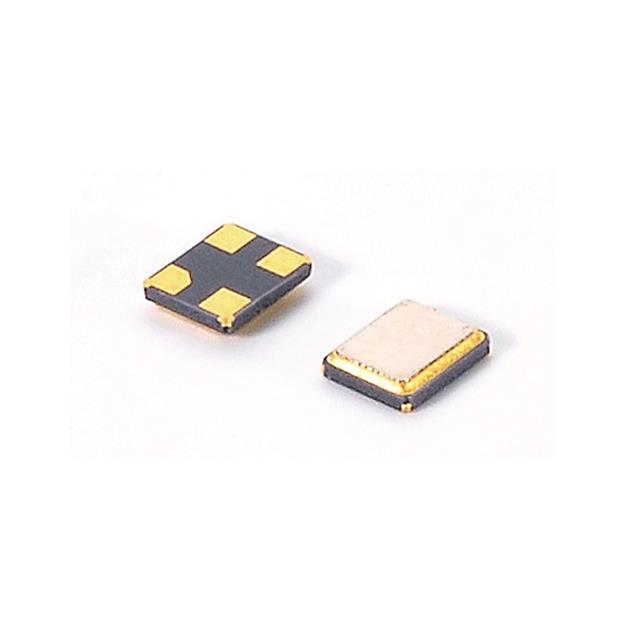

The K-F-12.000M-12-3030-4085-80 is a quartz crystal resonator manufactured by CEC Xtal, designed for surface-mount applications. It operates at a fundamental frequency of 12.000 MHz with a load capacitance of 12 pF. The component exhibits a frequency tolerance of ±30 ppm and a stability of ±80 ppm over the operating temperature range. It utilizes a 4-SMD, no lead package configuration, specifically sized as 3.2 mm x 2.5 mm, ensuring compatibility with automated assembly processes.

Crystals Feature Summary

• Provides precise timing signals through fundamental mode quartz resonance
• Features a compact surface-mount footprint suitable for space-constrained PCB layouts
• Ensures stable oscillation performance across specified industrial temperature ranges

Crystals Applications

• Microcontroller clock source generation
• Communication interface synchronization circuits
• Digital signal processing timing references

Crystals Procurement Notes

Verify the specific suffix codes against the manufacturer's official datasheet to confirm exact electrical tolerances and packaging specifications. Ensure that the requested variant matches the required load capacitance and frequency stability parameters for the target application environment before finalizing procurement orders.

Crystals Selection Notes

Select this component when a 12 MHz fundamental frequency crystal with ±30 ppm tolerance is required. The 12 pF load capacitance must align with the oscillator circuit design. Consider the 4-SMD package dimensions for board space constraints and verify thermal requirements against the specified operating range.

Crystals Part Context

This part belongs to the standard quartz crystal series produced by CEC Xtal, a major manufacturer of timing devices. The model designation indicates specific electrical characteristics including frequency, load capacitance, and tolerance levels, distinguishing it from other variants within the broader product portfolio.

Crystals Replacement Considerations

Direct substitutes must match the 12 MHz frequency, 12 pF load capacitance, and 4-SMD package dimensions. Verify equivalent frequency stability and temperature range specifications to ensure functional compatibility in existing designs.
