K-F-27.120M-10-2030-1070-30

Crystals Overview

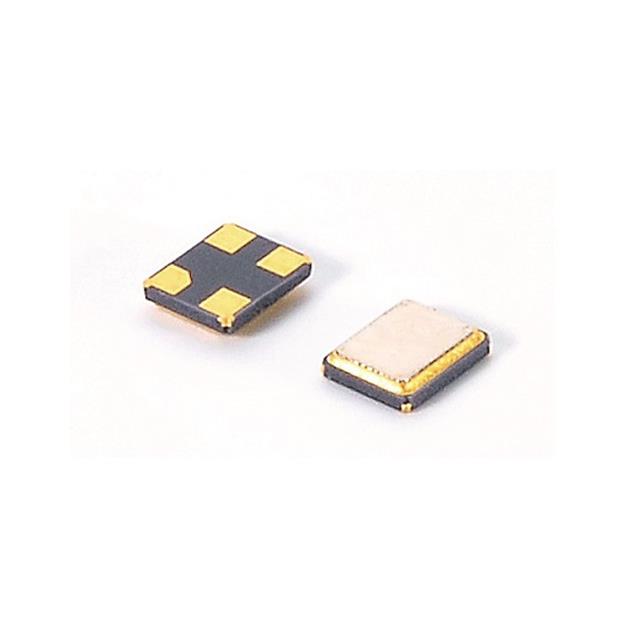

The K-F-27.120M-10-2030-1070-30 is a passive crystal oscillator manufactured by CEC Xtal. It operates at a fundamental frequency of 27.12 MHz with a load capacitance of 10 pF. The component exhibits a frequency tolerance of ±20 ppm and a temperature stability of ±30 ppm across an operating range of -10°C to +70°C. It utilizes a 4-SMD, No Lead package configuration.

Crystals Feature Summary

• Provides stable timing signals for electronic circuits
• Designed for surface-mount integration
• Operates within specified industrial temperature ranges

Crystals Applications

• General-purpose clock generation
• Microcontroller timing references
• Communication interface synchronization

Crystals Procurement Notes

Verify the specific ordering suffix against official manufacturer documentation to ensure alignment with required electrical parameters and packaging specifications. Confirm that the selected variant matches the intended application's thermal and frequency stability requirements before finalizing procurement orders.

Crystals Selection Notes

Select this component when a 27.12 MHz reference with ±20 ppm tolerance is required. Ensure the circuit design accommodates a 10 pF load capacitance. Verify that the -10°C to +70°C operational range meets the environmental constraints of the target system.

Crystals Part Context

This part belongs to the CEC Xtal crystal series, which focuses on passive frequency control components. The manufacturer integrates technology from Nanjing CEC Panda Crystal Technology Corporation, providing standardized surface-mount solutions for timing applications in consumer and industrial electronics.

Crystals Replacement Considerations

Direct substitutes include models with identical frequency, load capacitance, and package dimensions. Cross-reference alternative part numbers from CEC or other manufacturers ensuring matching ±20 ppm tolerance and 4-SMD form factor compatibility.
