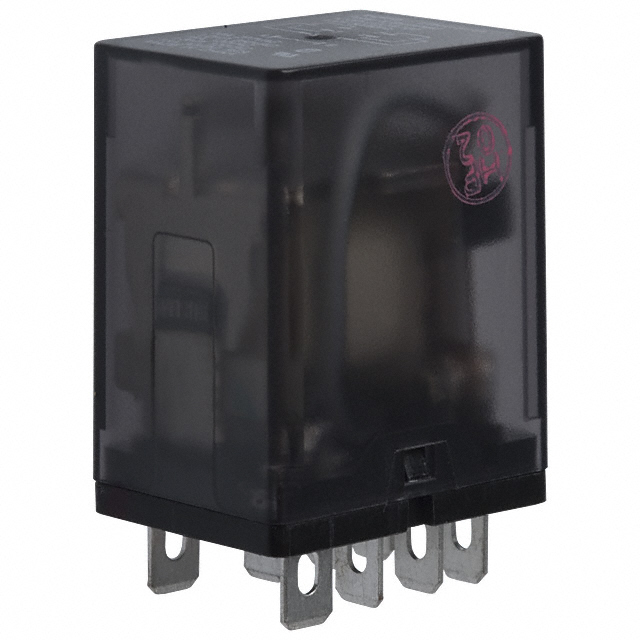

K10P-11D15-120

K10P-11D15-120 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists TE Connectivity Potter & Brumfield Relays. Its product description is RELAY GEN PURPOSE DPDT 15A 120V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for K10P-11D15-120

• Description：RELAY GEN PURPOSE DPDT 15A 120V
• Series：K10
• Mfr：TE Connectivity Potter & Brumfield Relays
• Package：Tray,Tray
• Mounting Type：Socketable
• Coil Voltage：120VDC
• Contact Form：DPDT (2 Form C)
• Contact Rating (Current)：15 A
• Switching Voltage：120VAC - Nom
• Load - Max Switching：-
• Coil Current：-
• Coil Type：Non Latching
• Features：-
• Termination Style：Plug In, Quick Connect - 0.187" (4.7mm)
• Seal Rating：-
• Coil Insulation：Class B
• Must Operate Voltage：90 VDC
• Must Release Voltage：12 VDC
• Operating Temperature：-45°C ~ 70°C
• Contact Material：Silver Cadmium Oxide (AgCdO)
• Approval Agency：CSA, UR
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：13 ms
• Release Time：10 ms

Power Relays, Over 2 Amps datasheet and documents for K10P-11D15-120
