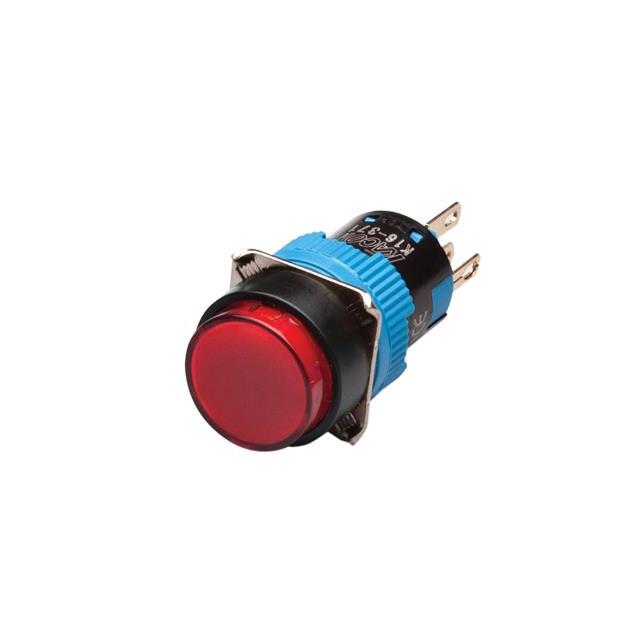

K16-272-R-24VDC

K16-272-R-24VDC is listed in the Pushbutton Switches range at ChipApex. The manufacturer field lists Kacon. Its product description is 16MM SWITCH PUSH ROUND DPDT RED. Review the specifications below when checking this part for your BOM.

Pushbutton Switches specifications for K16-272-R-24VDC

• Description：16MM SWITCH PUSH ROUND DPDT RED
• Series：K16
• Mfr：Kacon
• Package：Bulk
• Mounting Type：Panel Mount, Front
• Type：Standard, Illuminated
• Circuit：DPDT
• Switch Function：On-Mom
• Current Rating (Amps)：3A (AC/DC)
• Actuator Type：Round, Button
• Actuator Marking：-
• Color - Actuator/Cap：Red
• Illumination Type, Color：LED, Red
• Illumination Voltage (Nominal)：24 VDC
• Termination Style：Solder, Quick Connect - 0.110" (2.8mm)
• Ingress Protection：IP65 - Dust Tight, Water Resistant
• Features：-
• Panel Cutout Dimensions：Circular - 16.00mm Dia
• Operating Temperature：-25°C ~ 55°C
• Voltage Rating - DC：110 V
• Voltage Rating - AC：250 V
