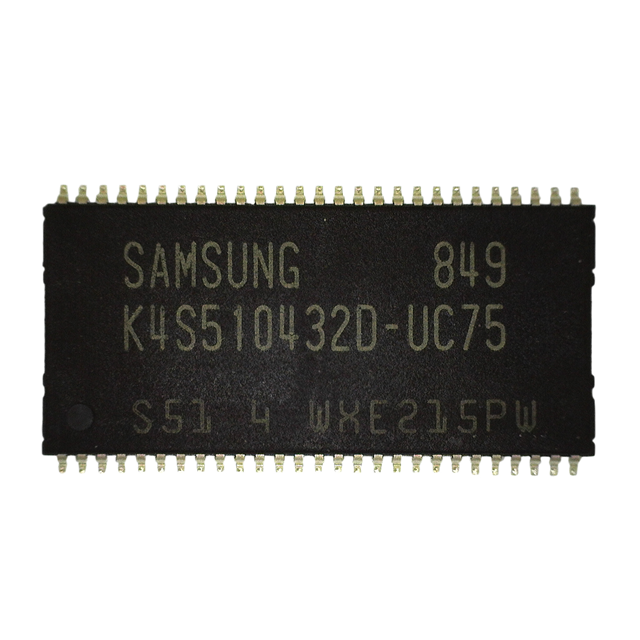

K4S510432D-UC75

$10.20

Description：IC DRAM 512MBIT LVTTL 54TSOP II
Series：-
Mfr：Samsung Semiconductor, Inc.
Package：Tray

SKU:978538d4164f Category: Memory IC Brand: Samsung Semiconductor, Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

K4S510432D-UC75 is listed in the Memory IC range at ChipApex. The manufacturer field lists Samsung Semiconductor, Inc.. Its product description is IC DRAM 512MBIT LVTTL 54TSOP II. Review the specifications below when checking this part for your BOM.

Memory IC specifications for K4S510432D-UC75

Description：IC DRAM 512MBIT LVTTL 54TSOP II
Series：-
Mfr：Samsung Semiconductor, Inc.
Package：Tray
Memory Type：Volatile
Memory Format：DRAM
Technology：SDRAM
Memory Size：512Mbit
Memory Organization：128M x 4
Memory Interface：LVTTL
Clock Frequency：133 MHz
Write Cycle Time - Word, Page：-
Voltage - Supply：3V ~ 3.6V
Operating Temperature：0°C ~ 70°C (TA)
Mounting Type：Surface Mount
Package / Case：54-TSOP (0.400", 10.16mm Width)
Supplier Device Package：54-TSOP II
Access Time：65 ns
Grade：-
Qualification：-

Memory IC datasheet and documents for K4S510432D-UC75

K4S510432D-UC75

Memory IC Overview

The K4S510432D-UC75 is a Samsung SDRAM component with a density of 512Mb, organized as 128M x 4. It features four internal banks and utilizes LVTTL interface at 3.3V. The device supports 8K/64ms refresh rates and operates within the commercial temperature range of 0°C to 70°C. It is housed in a lead-free 54-pin TSOP(II) package and achieves a maximum speed of 7.5ns (PC133 at 133MHz with CL=3).

Memory IC Feature Summary

Supports four-bank architecture for efficient memory access.
Compatible with PC100 standards for backward compatibility.
Features auto-refresh and self-refresh capabilities.

Memory IC Applications

Desktop computer systems
Consumer electronics devices
Embedded control applications

Memory IC Procurement Notes

Verify that the ordering suffix UC75 corresponds to the specific lead-free TSOP(II) package variant. Confirm the required speed grade matches the 7.5ns specification. Ensure the procurement documentation aligns with the commercial temperature range requirements.

Memory IC Selection Notes

Select this component when a 512Mb capacity with a 4-bit organization is required. It is suitable for designs needing standard LVTTL signaling and commercial operating temperatures. Consider alternative densities or organizations if system constraints differ from these specifications.

Memory IC Part Context

This part belongs to the Samsung SDRAM component family designed for general-purpose memory applications. It represents the fifth generation of Samsung SDRAM technology, utilizing D-die architecture. The product guide provides comprehensive details on its electrical characteristics and physical dimensions.

Memory IC Replacement Considerations

Check for other parts sharing the same density and organization. Verify pinout compatibility and timing parameters before substitution. Consult official replacement lists for confirmed equivalent components.
