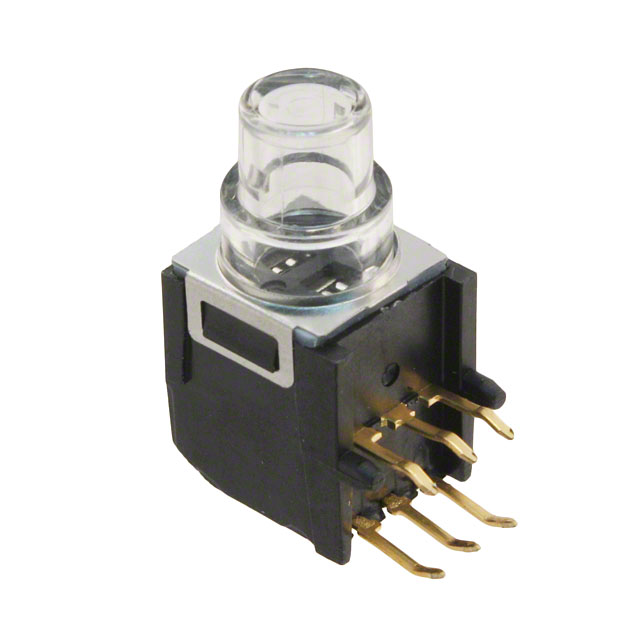

K5V 2 CL 4 3 T

K5V 2 CL 4 3 T is listed in the Tactile Switches range at ChipApex. The manufacturer field lists C&K. Its product description is SWITCH TACTILE SPDT 0.1A 32V. Review the specifications below when checking this part for your BOM.

Tactile Switches specifications for K5V 2 CL 4 3 T

• Description：SWITCH TACTILE SPDT 0.1A 32V
• Series：K5V
• Mfr：C&K
• Package：Bulk,Tray
• Circuit：SPDT
• Switch Function：On-Mom
• Contact Rating @ Voltage：0.1A @ 32VDC
• Actuator Type：Translucent
• Mounting Type：Through Hole, Right Angle
• Actuator Height off PCB, Vertical：-
• Actuator Length, Right Angle：12.40mm
• Actuator Orientation：Side Actuated
• Termination Style：PC Pin
• Outline：8.00mm x 10.10mm
• Illumination：Non-Illuminated
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Operating Force：400gf
• Ingress Protection：IP40
• Features：Tactile Feedback
• Operating Temperature：-40°C ~ 85°C

Tactile Switches datasheet and documents for K5V 2 CL 4 3 T
