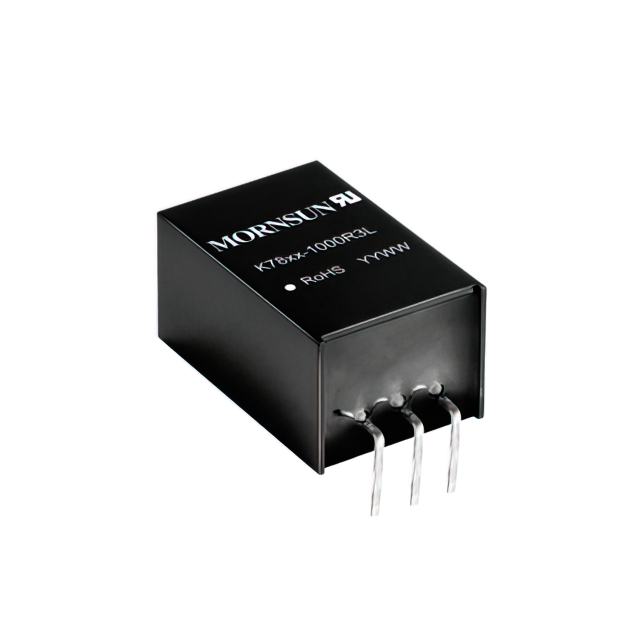

K7815-1000R3L

K7815-1000R3L is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Mornsun America, LLC. Its product description is LINEAR REGULATOR REPLACEMENT DC. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for K7815-1000R3L

• Description：LINEAR REGULATOR REPLACEMENT DC
• Series：K78xx-1000R3L
• Mfr：Mornsun America, LLC
• Package：Tube
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：8V
• Voltage - Input (Max)：36V
• Voltage - Output 1：15V or -15V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：1A or 300mA
• Power (Watts)：-
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：96%
• Mounting Type：Through Hole
• Package / Case：3-SIP Module
• Size / Dimension：0.69" L x 0.45" W x 0.35" H (17.5mm x 11.5mm x 9.0mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CB, CE, cURus, UL
• Standard Number：60950-1; 62368-1

DC DC Converters datasheet and documents for K7815-1000R3L
