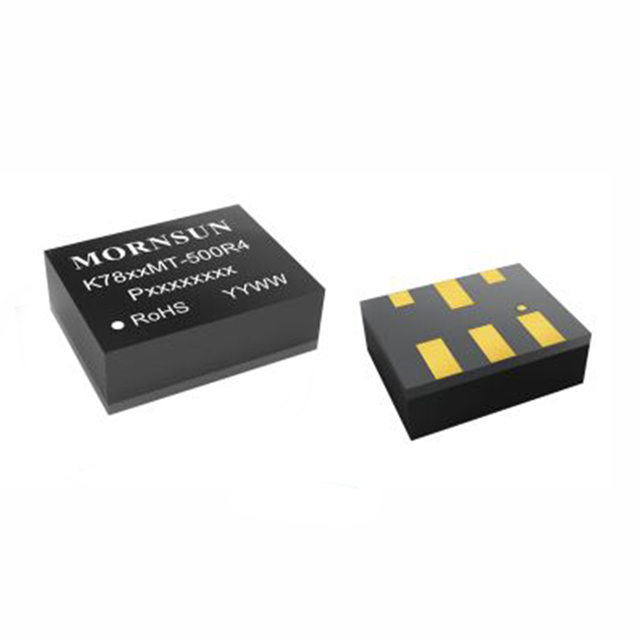

K7815MT-500R4

K7815MT-500R4 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Mornsun America, LLC. Its product description is DC DC CONVERTER +/-15V 9.8W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for K7815MT-500R4

• Description：DC DC CONVERTER +/-15V 9.8W
• Series：K78-R4
• Mfr：Mornsun America, LLC
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：8V, 18V
• Voltage - Input (Max)：21V, 36V
• Voltage - Output 1：15V, -15V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：500mA, 150mA
• Power (Watts)：9.8 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：SCP
• Operating Temperature：-40°C ~ 105°C
• Efficiency：91%
• Mounting Type：Surface Mount
• Package / Case：6-SMD Module
• Size / Dimension：0.35" L x 0.28" W x 0.12" H (9.0mm x 7.0mm x 3.1mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE
• Standard Number：-

DC DC Converters datasheet and documents for K7815MT-500R4
