KA1-MH10205M3

Overview

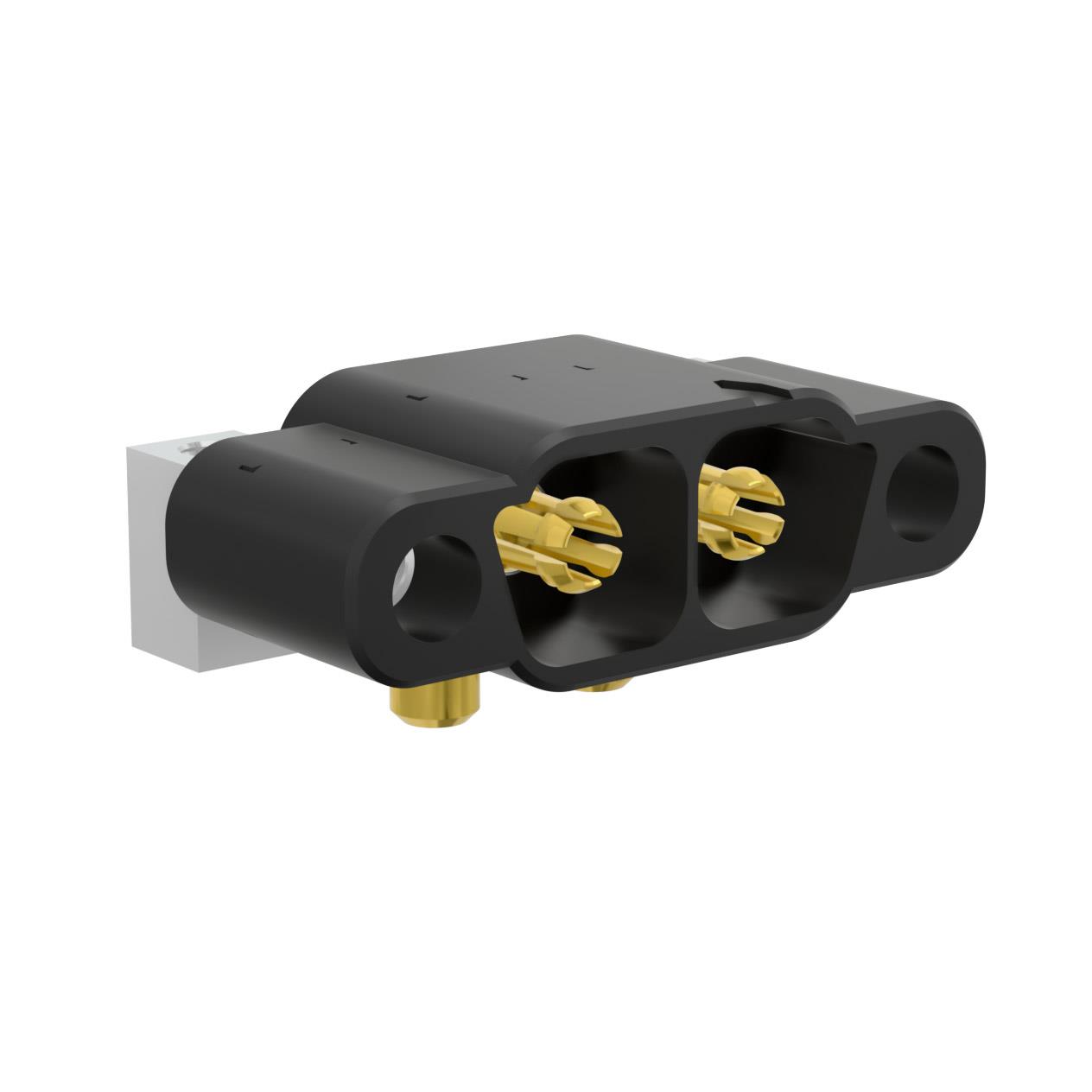

The KA1-MH10205M3 is a male pin header connector from the Harwin Kona KA1 series. It features a single row with two positions and utilizes through-hole right-angle termination for horizontal board mounting. The connector has a pitch of 8.50 mm (0.335 inches). It includes internally threaded screw fixings for secure attachment to panels or boards.

Feature Summary

• Single row male plug configuration with right-angle orientation
• Through-hole termination for horizontal board-to-board interface
• Integrated internally threaded screw fixings for panel mounting

Applications

• Board-to-cable connections requiring right-angle routing
• Panel mount applications utilizing screw fixation
• Horizontal interconnects in industrial equipment

Procurement Notes

Verify RoHS exemption status, specifically Exemption 6c, as indicated in distributor data. Confirm that the part number corresponds to the 2-position variant with 8.50 mm pitch. Ensure compatibility with mating sockets from the same KA1 series. Check for availability constraints as some distributors report stock limitations.

Selection Notes

Select this component when a low-count, high-pitch horizontal connector is required. The 8.50 mm spacing accommodates larger cables or power traces compared to standard headers. The right-angle design aids in space-constrained layouts where vertical clearance is limited but horizontal depth is available.

Part Context

This part belongs to the Kona KA1 family, known for robust mechanical performance. The KA1 series supports various configurations including mixed signal and power options. This specific model focuses on simple two-way connectivity with enhanced mechanical stability via screw fixing rather than friction lock.

Replacement Considerations

No direct public substitute part numbers are confirmed in the provided documentation. Cross-referencing requires matching the 8.50 mm pitch, 2-position count, right-angle orientation, and through-hole termination style.
