KA1-MH10305M4

$75.93

Description：3P M KONA RA PCB BRD AND PNL MNT
Series：KONA
Mfr：Harwin Inc.
Package：Tube

SKU:55edc8dce2d0 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：3P M KONA RA PCB BRD AND PNL MNT
Series：KONA
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.335" (8.50mm)
Number of Positions：3
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Panel Mount, Through Hole, Right Angle
Termination：Solder
Fastening Type：Threaded
Contact Length - Mating：-
Contact Length - Post：0.144" (3.66mm)
Overall Contact Length：-
Insulation Height：0.429" (10.90mm)
Contact Shape：Circular
Contact Finish - Mating：-
Contact Finish Thickness - Mating：-
Contact Finish - Post：-
Contact Material：-
Insulation Material：-
Features：Mounting Flange
Operating Temperature：-
Ingress Protection：-
Material Flammability Rating：-
Insulation Color：-
Current Rating (Amps)：-
Voltage Rating：-

Download product information

KA1-MH10305M4

Overview

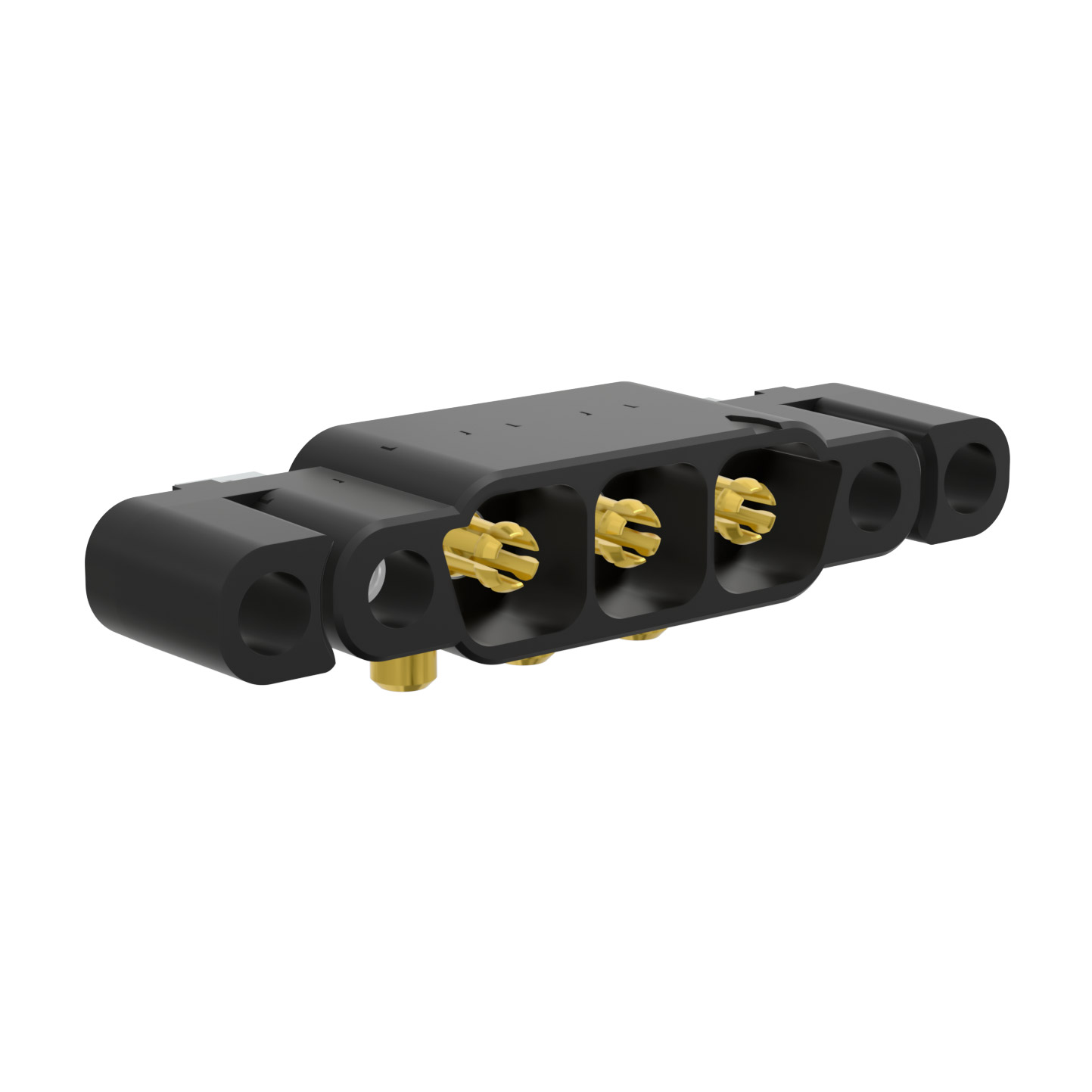

The KA1-MH10305M4 is a 3-position male pin header from the Harwin KONA KA1 series. It features a horizontal panel mount design with a metal backshell, intended for through-hole right-angle PCB installation. The connector utilizes an 8.50 mm (0.335 inch) pitch and supports wire-to-board power applications. This component provides a robust connection solution for industrial environments requiring secure panel mounting.

Feature Summary

Horizontal panel mount configuration with integrated metal backshell for structural stability
Through-hole right-angle termination suitable for direct PCB integration
Male pin contact type designed for reliable power transmission

Applications

Industrial control panels requiring secure power connections
Equipment housing where horizontal board mounting is necessary
Power distribution units needing ruggedized connectors

Procurement Notes

Verify the specific suffix M4 indicates the inclusion of the metal backshell assembly when sourcing replacements. Confirm that the required panel thickness aligns with the threaded mounting specifications of the backshell to ensure proper mechanical engagement. Check datasheets for exact mating force requirements and verify that the selected cable gauge matches the terminal capacity for safe current carrying performance in your specific application environment.

Selection Notes

Select this component when a rigid, horizontally mounted power interface is required within a panel enclosure. The metal backshell offers enhanced durability compared to plastic alternatives. Ensure the mating connector is compatible with the 8.50 mm pitch and male pin configuration. Consider the right-angle orientation for space-constrained vertical installations where board edge access is limited.

Part Context

This part belongs to the KONA KA1 family, which focuses on high-reliability power interconnects. The series is engineered for demanding industrial sectors including automation and transportation. The KA1 variant specifically emphasizes panel-mount capabilities, distinguishing it from standard board-only headers by incorporating threaded mounting features for secure attachment to chassis or enclosures.
