Product Detailed Parameters
- Description：CONN HDR 8.5MM VERT PCB 2POS
- Series：KONA
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin, Power
- Pitch - Mating：0.335" (8.50mm)
- Number of Positions：2
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.177" (4.50mm)
- Overall Contact Length：-
- Insulation Height：0.374" (9.50mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：Gold
- Contact Material：Beryllium Copper
- Insulation Material：Polyphenylene Sulfide (PPS)
- Features：Mating Flange, Mounting Flange
- Operating Temperature：-65°C ~ 150°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：60A per Contact
- Voltage Rating：-
Download product information
Overview

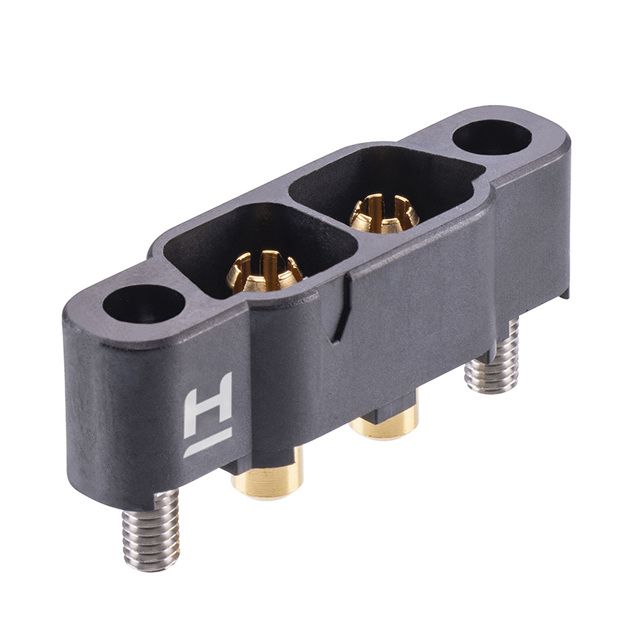

The KA1-MV10205M1 is a male header connector from the Kona series by Harwin Inc. It features a single row with two positions and a pitch of 8.5 mm (0.335 inches). Designed for through-hole termination, this component utilizes beryllium copper contacts with gold plating housed in a black nylon casing. The connector supports a maximum operating temperature of +150°C and is rated for high current applications up to 60 A and voltages up to 1.5 kV.
Feature Summary
- Individually shrouded recessed contacts ensure secure mating and alignment
- High current capacity suitable for demanding power distribution tasks
- Gold-plated beryllium copper contacts provide reliable conductivity and corrosion resistance
Applications
- Power distribution boards requiring high voltage isolation
- Industrial equipment connecting wire-to-PCB interfaces
- Heavy-duty machinery control systems
Procurement Notes
Verify that the specific part number matches the required 8.5 mm pitch and 2-position configuration. Confirm that the through-hole mounting style aligns with your PCB design specifications. Ensure the housing color and contact material meet your environmental and electrical requirements before finalizing procurement orders.
Selection Notes
Select this connector when high current carrying capability and robust insulation are critical. The wide 8.5 mm pitch accommodates larger gauge wires compared to standard headers. Consider the straight vertical orientation for panel or board edge connections where space allows for protruding pins.
Part Context
This component belongs to Harwin's Kona series, which specializes in high-power interconnect solutions. The series is engineered for applications requiring significant current handling and voltage isolation. The KA1-MV10205M1 represents a specific variant within this lineup, optimized for through-board installation with reinforced contact structures.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility carefully if considering alternative manufacturers due to the unique 8.5 mm pitch specification.
