KA1-MV10205M2

Overview

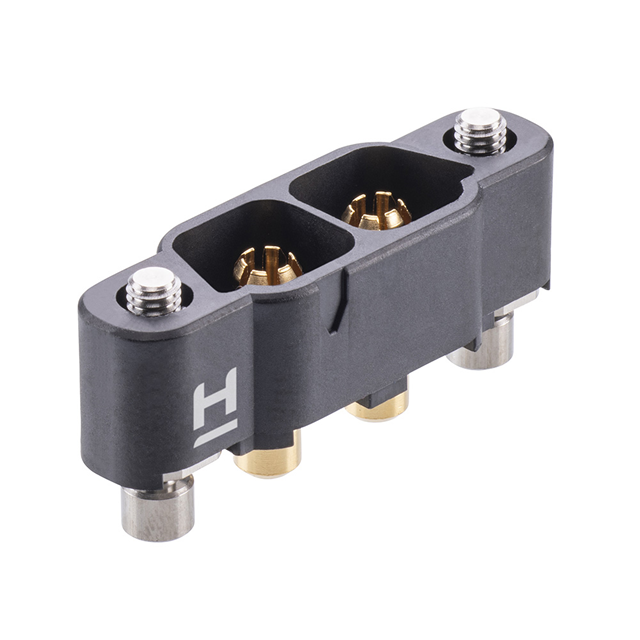

The Harwin KA1-MV10205M2 is a power-to-board connector from the Kona series, designed for through-hole mounting. It features a single row of two male pin contacts with an 8.5 mm pitch and a vertical orientation. The housing is constructed from Polyphenylene Sulfide (PPS), providing high thermal stability. Electrical ratings include a current capacity of up to 60 A and voltage support of 3000 V per contact. The unit has an insulation resistance of 10 GOhms and operates within a temperature range of -65 C to +150 C.

Feature Summary

• Individually shrouded recessed contacts ensure secure mating and prevent short circuits.
• High-reliability design supports significant current loads and high voltage isolation.
• Vertical through-hole termination allows for direct board integration.

Applications

• Industrial power distribution systems
• High-voltage equipment connections
• Power supply modules requiring robust interconnects

Procurement Notes

Verify the specific contact count and pitch against the official datasheet before ordering. Confirm that the vertical mounting style aligns with the PCB layout requirements. Ensure the operating environment temperature does not exceed the specified limits for the PPS housing material.

Selection Notes

Select this component when high current carrying capability and individual contact shrouding are required. The 8.5 mm pitch distinguishes it from standard low-power headers. Consider the vertical form factor for space-constrained vertical board arrangements.

Part Context

This part belongs to the Harwin Kona family, known for high-reliability power interconnects. The series offers various configurations for different current and voltage needs. The KA1 designation indicates a male plug connector in the Single In-line configuration.

Replacement Considerations

No public substitute part numbers are confirmed in the provided documentation. Verify compatibility with mating sockets before attempting cross-reference substitutions.
