KA1-MV10305M1

Overview

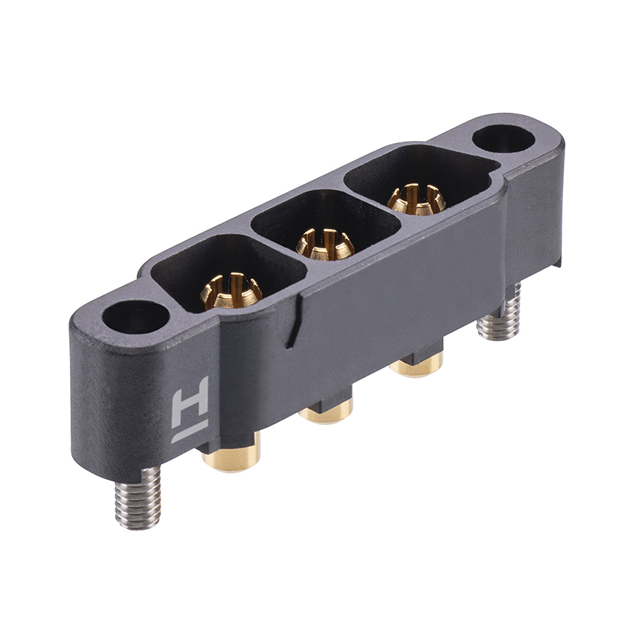

The Harwin KA1-MV10305M1 is a KONA series power-to-board connector designed for high-reliability applications. It features a 3-position single-row vertical male header with an 8.5mm pitch. The component utilizes through-hole termination for secure PCB mounting and includes internally threaded screw fixings to ensure robust mechanical retention. Rated for up to 60A current and 3000V per contact, it offers individually shrouded connections to prevent misalignment and short circuits in dense power distribution environments.

Feature Summary

• High-current capacity rated at 60A per contact
• Internally threaded screw-lock mechanism for secure mating
• Individually shrouded contacts to ensure correct alignment
• Vertical single-row configuration for board-to-board integration

Applications

• Industrial power distribution systems
• High-voltage equipment interconnections
• Server and data center power modules
• Automotive electric vehicle charging infrastructure

Procurement Notes

Verify the specific suffix codes against official Harwin documentation to confirm pin count, orientation, and termination style. Ensure that the selected variant matches the required voltage rating and current carrying capacity for the target application. Cross-reference the datasheet for precise dimensional tolerances and material specifications before finalizing procurement orders.

Selection Notes

Select this component when high current density and secure mechanical locking are required in vertical board-to-board configurations. The 8.5mm pitch provides ample spacing for high-voltage isolation. Consider the through-hole termination method for superior mechanical strength compared to surface mount alternatives in vibration-prone environments.

Part Context

This part belongs to the KONA family of high-reliability power connectors manufactured by Harwin. The series is engineered for demanding industrial and automotive sectors where consistent performance under harsh conditions is critical. The KA1-MV10305M1 specifically addresses the need for secure, high-amperage connections in compact form factors.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing mating connectors and PCB footprints if considering alternative suppliers or generic equivalents.

FAQ

What is the maximum current rating for this connector?

The KA1-MV10305M1 is rated for up to 60A per contact.

Does this connector include locking mechanisms?

Yes, it is fitted with internally threaded screw fixings to ensure secure mating.
