Product Detailed Parameters
- Description：CONN HDR 8.5MM VERT PCB 3POS
- Series：KONA Reverse Fix
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin, Power
- Pitch - Mating：0.335" (8.50mm)
- Number of Positions：3
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.177" (4.50mm)
- Overall Contact Length：-
- Insulation Height：0.374" (9.50mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：Gold
- Contact Material：Beryllium Copper
- Insulation Material：Polyphenylene Sulfide (PPS)
- Features：Mating Flange, Mounting Flange
- Operating Temperature：-65°C ~ 150°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：60A per Contact
- Voltage Rating：-
Download product information
Overview

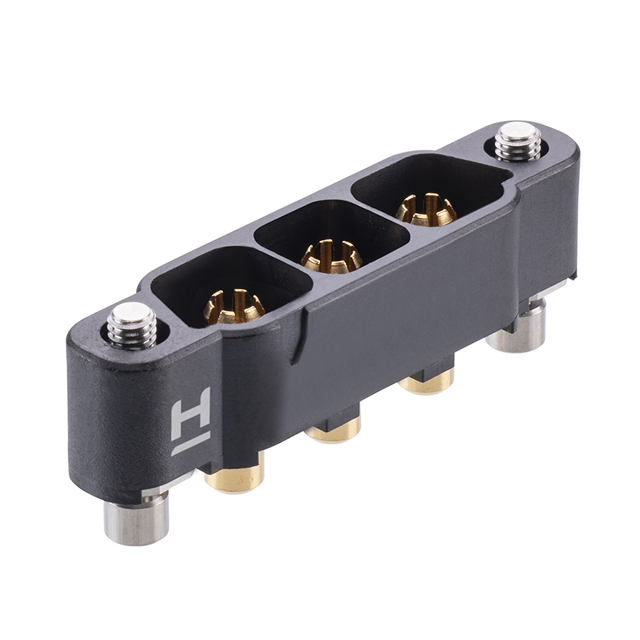

KA1-MV10305M2 is a Kona series pin header connector with an 8.50mm pitch, designed for through-hole vertical mounting. It features a 3-position single-row configuration with male pins. The component supports high-reliability applications, rated for up to 60A and 3000V per contact. It utilizes individually shrouded connections to ensure secure mating.
Feature Summary
- High-voltage and high-current capability supporting up to 3000V and 60A per contact
- Individually shrouded connection design for enhanced reliability
- Vertical through-hole mounting style with straight orientation
Applications
- High-voltage power distribution systems
- Industrial equipment requiring high-reliability interconnects
- Power-to-board connections in demanding environments
Procurement Notes
Verify current availability status as lead times may vary. Confirm that the specific ordering suffix matches the required pitch and contact count. Ensure compatibility with mating sockets within the Kona KA1 series. Check for any recent product change notices or material updates from Harwin Inc. prior to finalizing procurement orders.
Selection Notes
Select this part for applications requiring robust power interconnections with high voltage isolation. The 8.50mm pitch provides significant spacing between contacts. Consider the vertical form factor for board-to-cable or board-to-board layouts where space allows. Verify that the 60A rating meets the specific circuit requirements.
Part Context
The KA1-MV10305M2 belongs to the Kona KA1 series, known for high-reliability power connectors. This series is characterized by its large 8.50mm pitch, which facilitates high current handling and voltage isolation. The M2 suffix typically denotes specific housing or pin configurations within the broader KA1 family.
Replacement Considerations
No direct public substitute part numbers are confirmed for this specific variant. Replacement requires matching the 8.50mm pitch, 3-position count, and vertical through-hole mounting style within the Kona KA1 series or equivalent high-power connector families.
