Product Detailed Parameters
- Description：2 POS. MALE SIL VERTICAL THROUGH
- Series：KONA
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin, Power
- Pitch - Mating：0.335" (8.50mm)
- Number of Positions：2
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.260" (6.60mm)
- Overall Contact Length：-
- Insulation Height：0.374" (9.50mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：Gold
- Contact Material：Beryllium Copper
- Insulation Material：Polyphenylene Sulfide (PPS)
- Features：Pick and Place
- Operating Temperature：-65°C ~ 150°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：60A per Contact
- Voltage Rating：-
Download product information
Overview

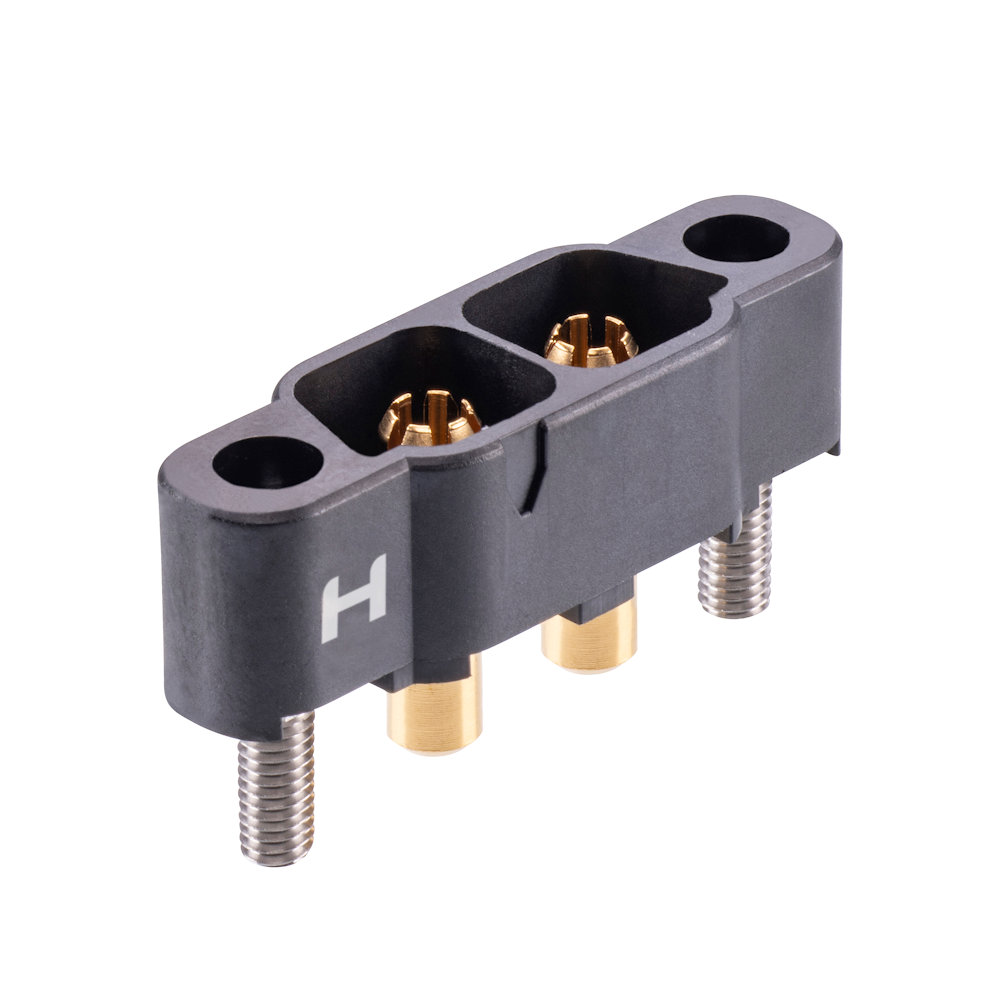

The KA1-MV20205M1 is a KONA KA1 series rectangular power connector manufactured by Harwin Inc. It features a 2-position male through-hole straight PCB mount configuration with screw-lock cable housing compatibility. The component supports a current rating of 60A per contact and utilizes UL94 V-0 rated black insulation material.
Feature Summary
- High-current capability with 60A per contact rating
- Screw-lock mechanism for secure cable attachment
- Through-hole straight PCB mounting style
Applications
- Industrial power distribution systems
- Heavy-duty equipment interconnects
- Power supply module connections
Procurement Notes
Verify the specific pin configuration and mating housing requirements against the official Harwin datasheet before procurement. Confirm that the 60A current rating aligns with the thermal management design of the target application to ensure reliable operation under load conditions.
Selection Notes
Select this component when high current capacity is required in a compact form factor. The screw-lock feature provides superior retention compared to friction-fit housings, making it suitable for environments subject to vibration or mechanical stress during operation.
Part Context
This part belongs to the KONA KA1 series, designed for robust power-to-board applications. It complements other accessories in the family, such as backshells like the KA1-9700400, to create complete interconnection solutions for demanding industrial and commercial power systems.
Replacement Considerations
No direct substitute part numbers are publicly confirmed for this specific model. Evaluate alternative connectors based on matching pitch, current rating, and mounting style if replacement is necessary.
