Product Detailed Parameters
- Description：2 POS. MALE SIL VERTICAL THROUGH
- Series：KONA
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin, Power
- Pitch - Mating：0.335" (8.50mm)
- Number of Positions：2
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.232" (5.90mm)
- Overall Contact Length：-
- Insulation Height：0.374" (9.50mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：Gold
- Contact Material：Beryllium Copper
- Insulation Material：Polyphenylene Sulfide (PPS)
- Features：Pick and Place
- Operating Temperature：-65°C ~ 150°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：60A per Contact
- Voltage Rating：-
Download product information
Overview

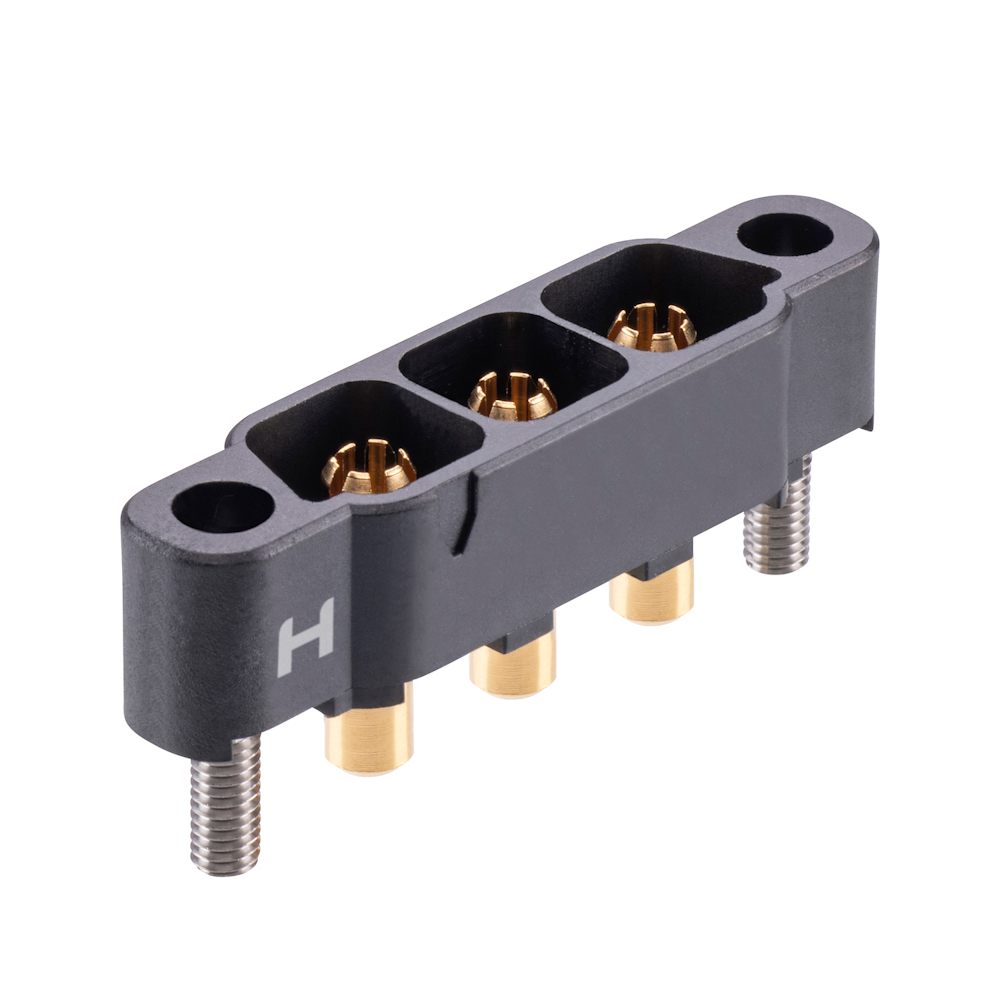

The Harwin KA1-MV20205M2 is a KONA series power-to-the-board connector featuring two male pins in a single inline configuration. Designed for vertical through-board mounting, it utilizes a 3mm PCB spacing to accommodate high-current applications. The component supports reliable electrical connections within industrial and automotive environments, offering robust mechanical stability for board-level power distribution systems.
Feature Summary
- Vertical through-board mounting design for secure PCB integration
- Single inline configuration with two male contact positions
- Optimized for high-current power distribution applications
Applications
- Industrial control system power interfaces
- Automotive electronic module connections
- Board-level power distribution networks
Procurement Notes
Verify the specific pin count and pitch requirements against the target PCB layout before ordering. Confirm that the vertical mounting orientation aligns with the assembly constraints. Ensure compatibility with mating connectors within the KONA series ecosystem to guarantee proper engagement and electrical performance.
Selection Notes
Select this component when a compact, high-reliability solution is required for vertical power insertion. The 3mm spacing provides adequate clearance for thermal management and trace routing. Consider the current carrying capacity and environmental ratings to ensure suitability for the intended operational conditions.
Part Context
This part belongs to the KONA family of high-reliability power connectors from Harwin. The series is engineered for demanding applications requiring robust performance under vibration and thermal stress. It complements other KONA variants by offering a specific low-pin-count option for simplified power routing.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify cross-compatibility with existing KONA series components if alternative sourcing is necessary.
