Product Detailed Parameters
- Description：3 POS. MALE SIL VERTICAL THROUGH
- Series：KONA
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin, Power
- Pitch - Mating：0.335" (8.50mm)
- Number of Positions：3
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.260" (6.60mm)
- Overall Contact Length：-
- Insulation Height：0.374" (9.50mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：Gold
- Contact Material：Beryllium Copper
- Insulation Material：Polyphenylene Sulfide (PPS)
- Features：Pick and Place
- Operating Temperature：-65°C ~ 150°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：60A per Contact
- Voltage Rating：-
Download product information
Overview

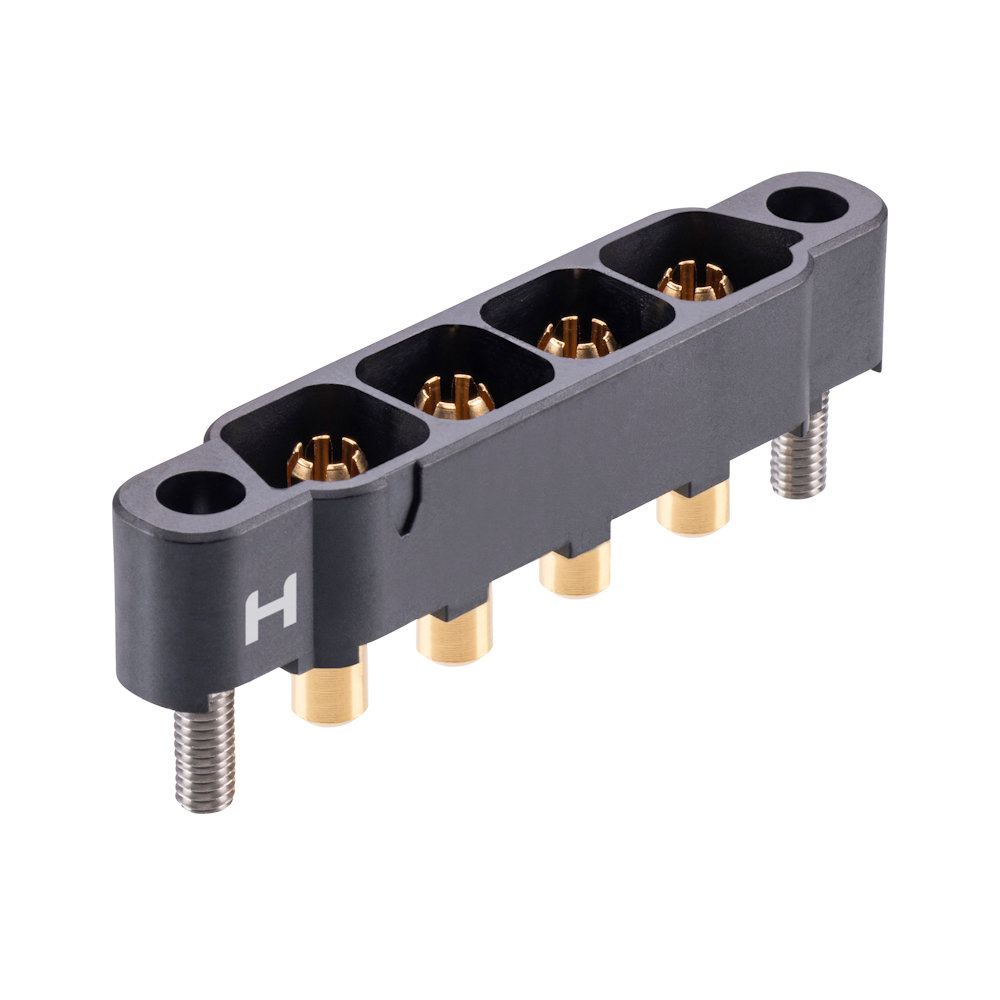

The KA1-MV20305M1 is a rectangular power connector from the Kona KA1 series, manufactured by Harwin. It features a 3-position male configuration designed for PCB mount applications using through-hole straight termination. The component utilizes screw-lock mechanisms for secure cable housing attachment and includes individually shrouded recessed contacts with gold finish to ensure reliable electrical performance in high-current environments.
Feature Summary
- Screw-lock cable housing design for secure mechanical retention
- Individually shrouded recessed contacts with gold finish
- Single row vertical through-board termination style
Applications
- Power distribution systems requiring high current capacity
- Industrial equipment internal wiring connections
- Control panel assembly and maintenance
Procurement Notes
Verify the specific pin count and orientation against the official datasheet before integration. Confirm that the screw-lock mechanism aligns with the assembly requirements. Ensure the through-hole footprint matches the PCB layout specifications to prevent installation errors during manufacturing.
Selection Notes
Select this component when a robust, high-current connection is required for board-to-wire interfaces. The screw-lock feature provides superior vibration resistance compared to standard snap-fit connectors. Consider the vertical mounting profile and single-row layout constraints when designing the enclosure space.
Part Context
This part belongs to the Kona KA1 series, which is engineered for demanding power-to-the-board applications. The series is characterized by its ability to handle significant current loads while maintaining a compact form factor suitable for dense electronic assemblies and industrial control modules.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with mating cables and housings from the same Kona KA1 family if cross-referencing is necessary.
