KA1-MV20405M2

Overview

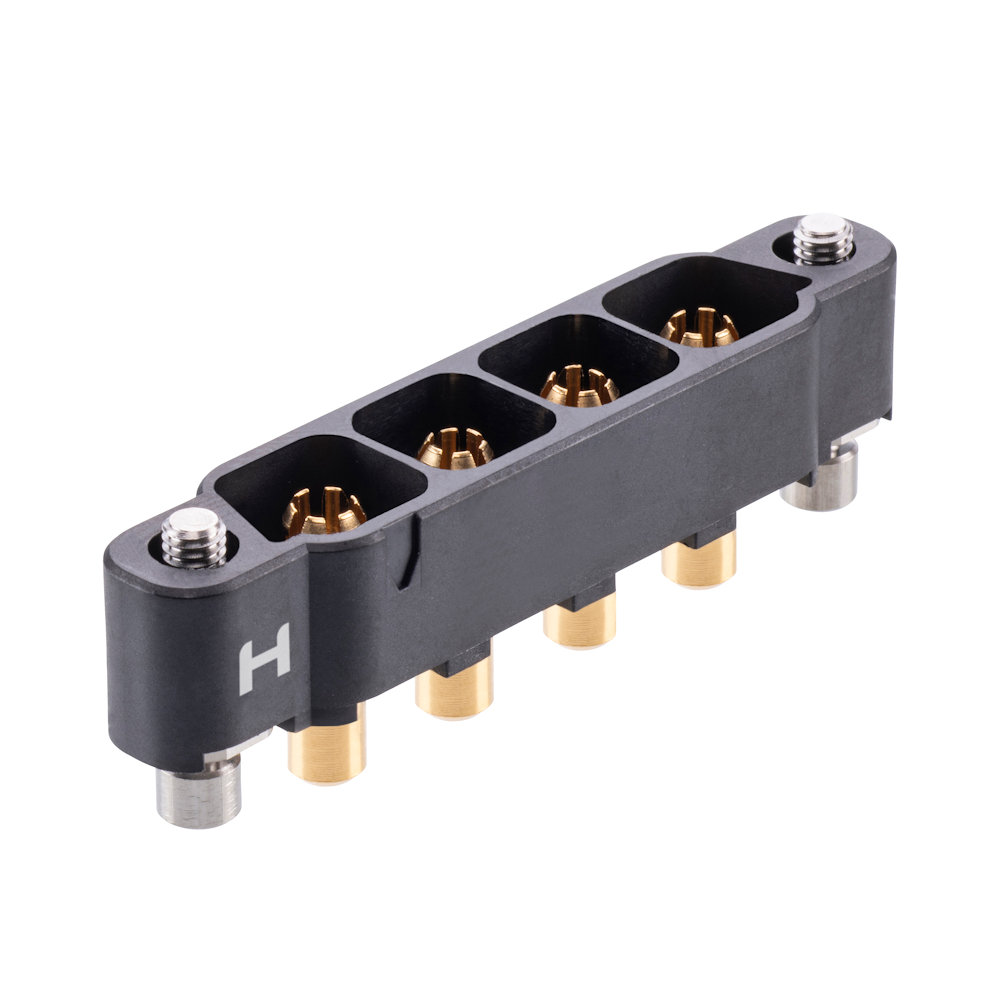

The KA1-MV20405M2 is a Kona KA1 Series rectangular power connector featuring four male contacts with an 8.50 mm pitch. Designed for through-hole straight PCB mounting, it supports high-reliability applications requiring robust electrical connections. The component provides a current rating of 60A per contact and utilizes black insulation material. It is engineered to meet stringent environmental standards, including specific outgassing data requirements suitable for sensitive operational environments.

Feature Summary

• High current capacity rated at 60A per contact
• 8.50 mm pitch spacing for secure mating
• Through-hole straight vertical board mount configuration
• Compliant with strict outgassing specifications

Applications

• High-reliability industrial power distribution systems
• Aerospace and defense electronic assemblies
• Medical equipment power interfaces
• Automotive electronics requiring high current handling

Procurement Notes

Verify the specific datasheet version C052XX Component Specification when sourcing. Confirm that the ordering suffix matches the required pin configuration and termination style. Ensure compatibility with mating sockets from the same Kona KA1 series family. Check for any specific environmental certifications required by the target application before finalizing procurement orders.

Selection Notes

Select this connector when high current carrying capability is essential for the design. The 8.50 mm pitch allows for larger contact areas compared to standard signal connectors. Consider the through-hole mounting method for superior mechanical stability under vibration. Evaluate the thermal management requirements given the 60A per contact rating to ensure adequate heat dissipation in the final assembly.

Part Context

This part belongs to the Harwin Kona KA1 series, which focuses on high-reliability interconnect solutions. The series is characterized by its large pitch and robust construction designed for demanding environments. The KA1-MV20405M2 specifically addresses the need for vertical mounting configurations within this high-current product line.

Replacement Considerations

Direct substitutes must maintain the 8.50 mm pitch and 60A per contact rating. Verify that alternative components support the same through-hole straight mounting orientation. Ensure mating compatibility with existing KA1 series sockets. Cross-reference outgassing data if the application involves vacuum or sealed enclosures.
