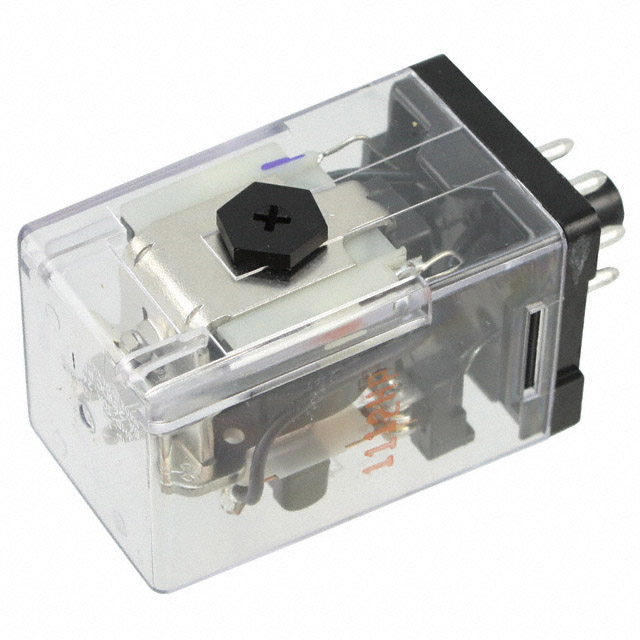

KAP-11DG-24

KAP-11DG-24 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists TE Connectivity Potter & Brumfield Relays. Its product description is RELAY GEN PURPOSE DPDT 10A 24V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for KAP-11DG-24

• Description：RELAY GEN PURPOSE DPDT 10A 24V
• Series：KAP
• Mfr：TE Connectivity Potter & Brumfield Relays
• Package：Bulk
• Mounting Type：Socketable
• Coil Voltage：24VDC
• Contact Form：DPDT (2 Form C)
• Contact Rating (Current)：10:00 AM
• Switching Voltage：240VAC - Max
• Load - Max Switching：2400VA
• Coil Current：51 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：Plug In, 8 Pin (Octal)
• Seal Rating：-
• Coil Insulation：Class B
• Must Operate Voltage：18 VDC
• Must Release Voltage：-
• Operating Temperature：-45°C ~ 85°C
• Contact Material：Silver Cadmium Oxide (AgCdO)
• Approval Agency：-
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：-
• Release Time：-

Power Relays, Over 2 Amps datasheet and documents for KAP-11DG-24
