KB DELSS2.D1-VHAZ-A-2686-20-S

LED Indication - Discrete Overview

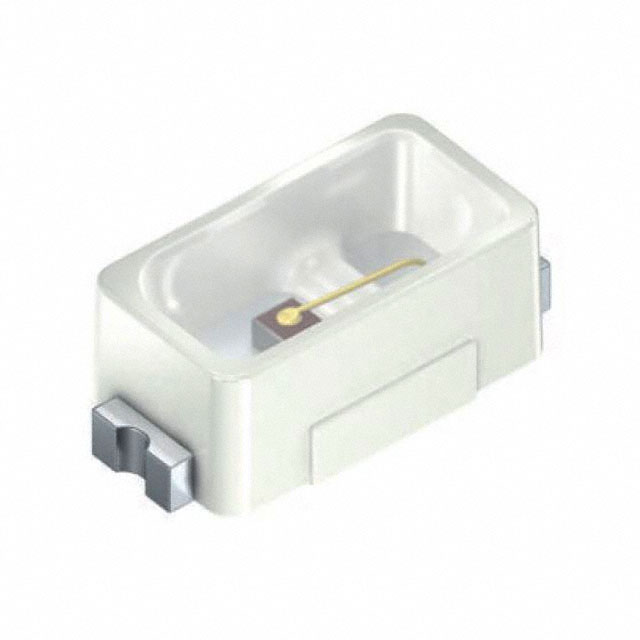

The KB DELSS2.D1-VHAZ-A-2686-20-S is a single-color blue LED from the OSTUNE series, manufactured by ams OSRAM. It utilizes a top-led SMD/SMT package with dimensions of 1.6 mm x 0.8 mm and a height of 0.6 mm. The component features a rectangular diffused lens measuring 1.23 mm x 0.6 mm. Key electrical parameters include a forward current of 20 mA, a forward voltage of 3.1 V, and a power rating of 62 mW. Optical performance specifications list an intensity of 1.31 cd and a luminous flux of 3.99 lm.

LED Indication - Discrete Feature Summary

• Blue light emission within the OSTUNE product family
• Surface-mount topology in a compact 1608 metric form factor
• Rectangular diffused lens for wide-angle illumination

LED Indication - Discrete Applications

• Status indication in electronic devices
• Backlighting applications requiring blue spectrum
• Automotive interior lighting components

LED Indication - Discrete Procurement Notes

Verify the specific suffix configuration against official datasheets to ensure correct optical and electrical characteristics. Confirm AEC-Q102 qualification status if automotive compliance is required. Cross-reference manufacturer part numbers with distributor codes to prevent ordering errors due to similar naming conventions within the same product family.

LED Indication - Discrete Selection Notes

Select this component based on its specific blue wavelength output and 1608 footprint constraints. Evaluate the 20 mA forward current requirement against system power budgets. Ensure the diffused lens characteristic aligns with the desired viewing angle and brightness distribution requirements for the target application environment.

LED Indication - Discrete Part Context

This device belongs to the KB DELSS2.D1 series, designed for high-reliability applications. The OSTUNE branding indicates optimized thermal and optical performance characteristics typical of modern surface-mount LEDs. The component represents a standard solution for space-constrained blue indicator or lighting needs in consumer and industrial electronics.

LED Indication - Discrete Replacement Considerations

Consult official substitution guides for compatible alternatives within the DELSS2 family. Verify pinout compatibility and dimensional tolerances before replacing existing designs. No direct public substitute part numbers are confirmed for this specific variant.
