KBJB1510_T0_00301

$1.51

Description：GLASS PASSIVATED LOW PROFILE BRI
Series：-

SKU:4386d9014c6e Category: Bridge Rectifiers Brand: Panjit International Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：GLASS PASSIVATED LOW PROFILE BRI
Series：-
Mfr：Panjit International Inc.
Package：Tube
Diode Type：-
Technology：-
Voltage - Peak Reverse (Max)：-
Current - Average Rectified (Io)：-
Voltage - Forward (Vf) (Max) @ If：-
Current - Reverse Leakage @ Vr：-
Operating Temperature：-
Mounting Type：-
Package / Case：-
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

KBJB1510_T0_00301

Overview

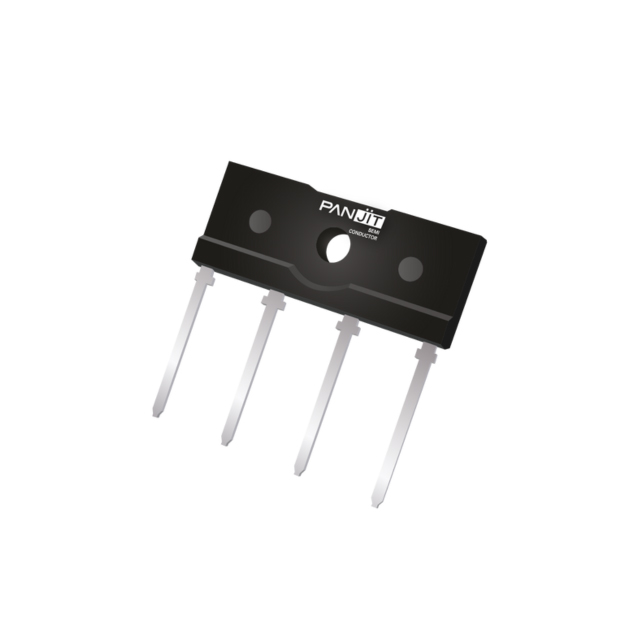

The KBJB1510 is a glass passivated low profile bridge rectifier manufactured by Panjit International Inc. It features a thin single in-line package designed for compact power applications. The device supports a maximum repetitive peak reverse voltage of 1000 V and a maximum average forward current of 15 A with a heatsink, or 3.2 A without one. Peak forward surge current reaches 220 A at 25 °C. Operating junction temperature ranges from -55 °C to 150 °C. Typical thermal resistance is 13 °C/W when mounted on an aluminum plate heatsink.

Feature Summary

Glass passivated chip junction for enhanced reliability
Thin single in-line package suitable for slim adapters
High surge current capability for robust performance

Applications

Slim Adapter Power
Game Console Power
TV Power

Procurement Notes

Verify the specific ordering suffix T0_00301 against official Panjit documentation to confirm packaging details. The datasheet indicates standard packing is 20 pieces per tube. Ensure the component meets UL 94 V-0 flammability ratings and RoHS compliance requirements for your specific assembly process.

Selection Notes

Select this component for designs requiring high voltage isolation in space-constrained environments. Evaluate thermal management needs carefully, as the average forward current drops significantly from 15 A to 3.2 A when operating without a heatsink. Verify that the 1000 V rating exceeds the peak inverse voltage in the target circuit.

Part Context

This part belongs to the KBJB series of low profile bridge rectifiers. The series utilizes a thin single in-line package to accommodate modern surface mount and through-hole requirements for compact electronics. The KBJB1510 specifically denotes the 1000 V voltage rating within this family.

Replacement Considerations

Consult official manufacturer substitution lists for verified equivalents. Generic replacements must match the 1000 V reverse voltage, 15 A forward current, and KBJB package dimensions to ensure physical and electrical compatibility.
