KBJL1510-TU

Overview

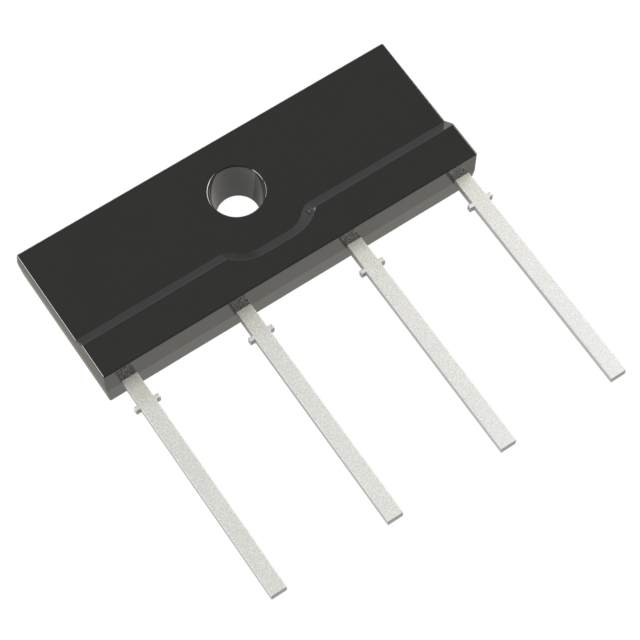

The KBJL1510-TU is a single-phase standard recovery bridge rectifier manufactured by Diodes Incorporated. It features a maximum repetitive peak reverse voltage of 1000 V and an average rectified output current of 15 A without a heatsink. The device utilizes glass passivation die construction for reliability. Electrical characteristics include a maximum forward voltage of 1.0 V at 7.5 A and a maximum leakage current of 10 µA at rated voltage and 25°C. The component operates within a junction temperature range of -55°C to +150°C.

Feature Summary

• Glass passivation die construction
• High surge current capability
• Lead-free finish with RoHS compliance
• Halogen and antimony free green device

Applications

• TV power supplies
• Game console power supplies
• PC power supplies

Procurement Notes

Verify the specific ordering suffix against official documentation to confirm packaging details. Confirm that the requested quantity aligns with the manufacturer's standard tube packing configuration. Ensure compliance with applicable environmental directives such as RoHS 3 requirements before finalizing procurement orders.

Selection Notes

Select this component based on the required peak reverse voltage rating of 1000 V and the continuous current demand of 15 A. Evaluate thermal management needs, as the average forward current derates significantly when operating without a heatsink. Verify that the package dimensions fit the intended printed circuit board layout constraints.

Part Context

This part belongs to the KBJL series of medium-to-high power bridge rectifiers from Diodes Incorporated. The series offers various voltage ratings including 600 V, 800 V, and 1000 V variants. The KBJL1510 specifically denotes the 1000 V version within this standardized product family designed for through-hole mounting applications.

Replacement Considerations

KBJL1508-TU

FAQ

What is the maximum non-repetitive peak forward surge current?

The maximum non-repetitive peak forward surge current is 220 A for an 8.3 ms single half-sine wave at a junction temperature of +25°C.

Is this component suitable for automotive applications?

For automotive applications requiring specific change control or AEC-Q qualification, customers must contact Diodes Incorporated directly, as standard parts may not meet these specific criteria.

What is the typical junction capacitance?

The typical junction capacitance is 55 pF, measured at 1.0 MHz with an applied reverse voltage of 4.0 V DC.
