Product Detailed Parameters

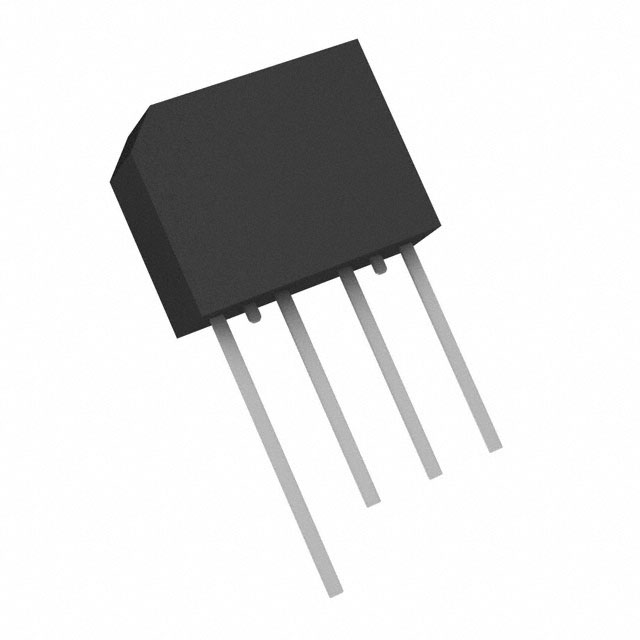

- Description：BRIDGE RECT 1PHASE 50V 2A KBP
- Series：-
- Mfr：Comchip Technology
- Package：Bulk
- Diode Type：Single Phase
- Technology：Standard
- Voltage - Peak Reverse (Max)：50 V
- Current - Average Rectified (Io)：2:00 AM
- Voltage - Forward (Vf) (Max) @ If：1.1 V @ 2 A
- Current - Reverse Leakage @ Vr：10 µA @ 50 V
- Operating Temperature：-55°C ~ 150°C (TJ)
- Mounting Type：Through Hole
- Package / Case：4-SIP, KBP
- Supplier Device Package：KBP
- Grade：-
- Qualification：-
Download product information
Overview
The KBP2005G-G is a glass-passivated bridge rectifier manufactured by Comchip Technology. It features a single-phase configuration with a maximum average forward rectified current of 2.0 amperes and a repetitive peak reverse voltage of 50 volts. The device utilizes a plastic molded case for durability and is designed for surface mount installation in the KBP package style. It operates within a junction temperature range of -55°C to +175°C, ensuring reliability under varying thermal conditions.
Feature Summary
- Glass passivation provides electrical isolation and protection against mechanical stress.
- Plastic molded case offers durability for industrial environments.
- High surge current capability supports transient load conditions.
Applications
- AC-DC power supply circuits
- Battery chargers
- General purpose rectification
Procurement Notes
Verify the manufacturer part number against official Comchip Technology documentation to ensure authenticity. Confirm that the component meets RoHS directives if required by the assembly specifications. Check for any specific handling instructions related to the surface mount package during storage and soldering processes.
Selection Notes
Select this component when a compact surface mount bridge rectifier is required for low-voltage applications. Ensure the circuit's peak inverse voltage does not exceed the 50V rating. Verify that the PCB layout accommodates the KBP footprint dimensions and thermal requirements for continuous 2.0A operation.
Part Context
This component belongs to the KBP series of glass-passivated bridge rectifiers from Comchip Technology. The series is characterized by its small outline package suitable for automated surface mount assembly. It serves as a standard solution for converting AC input to DC output in space-constrained electronic designs.
Replacement Considerations
Compatible substitutes include the DBLS153G and MP6005G. Verify pinout compatibility and electrical ratings before substitution. Ensure the alternative component meets the same thermal and mechanical standards for the intended application.
