Product Detailed Parameters

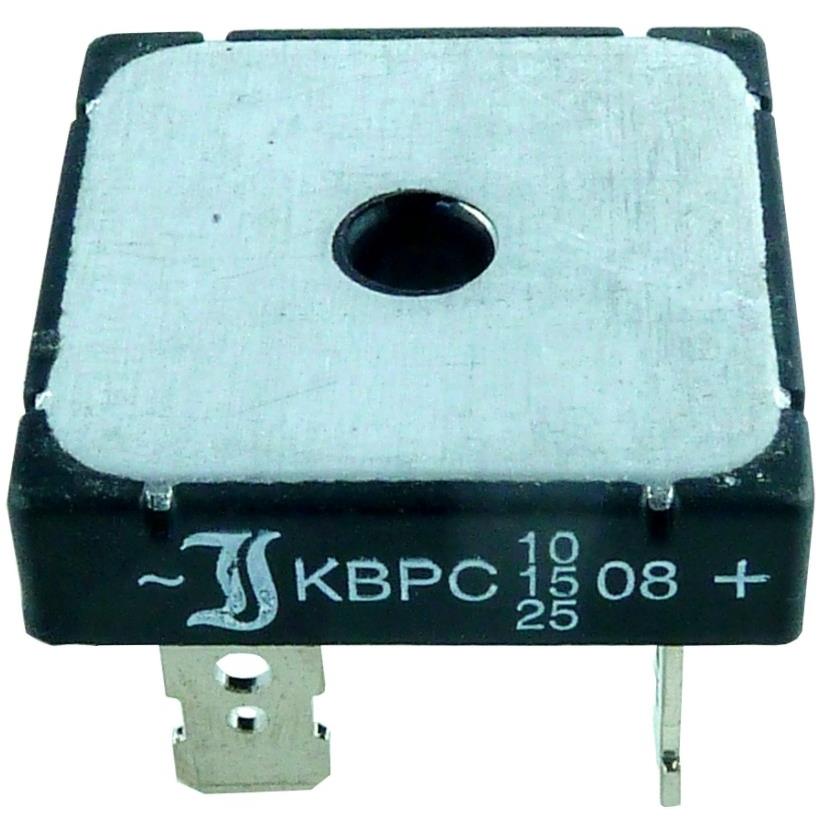

- Description：BRIDGE RECT 1P 600V 35A KBPC35
- Series：-
- Mfr：Diotec Semiconductor
- Package：Box
- Diode Type：Single Phase
- Technology：Standard
- Voltage - Peak Reverse (Max)：600 V
- Current - Average Rectified (Io)：35 A
- Voltage - Forward (Vf) (Max) @ If：1.1 V @ 17.5 A
- Current - Reverse Leakage @ Vr：10 µA @ 600 V
- Operating Temperature：-50°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：4-Square, KBPC35
- Supplier Device Package：KBPC35
- Grade：-
- Qualification：-
Download product information
Overview
The KBPC3506FP is a single-phase diode bridge rectifier manufactured by Diotec Semiconductor. It features a maximum average forward rectified current (IFAV) of 35 A and a repetitive peak reverse voltage (VRRM) of 600 V. The device utilizes fast-on terminals for mounting and operates within a junction temperature range up to 150°C. Typical electrical characteristics include a forward voltage (VF) below 1.1 V, a peak forward surge current (IFSM) of 375 A at 50 Hz, and a typical reverse recovery time (trr) of approximately 1500 ns.
Feature Summary
- Four diodes integrated in a bridge configuration
- Plastic case with an isolated aluminum baseplate
- UL recognized component under File E175067
Applications
- 50/60 Hz mains rectification
- Power supplies
- Commercial and industrial grade equipment
Procurement Notes
Verify the specific ordering suffix when purchasing. The standard FP designation indicates fast-on terminals suitable for 6.3mm connectors or solder assembly. Suffixes such as -Q denote AEC-Q101 compliance, while -AQ indicates AEC-Q101 qualification. Confirm these details against official documentation to ensure the correct variant matches the design requirements.
Selection Notes
Select this component based on the required reverse voltage rating and thermal management needs. The device supports a continuous current of 35 A on a 300 cm² heatsink. Ensure the application does not exceed the specified repetitive peak reverse voltage per diode. Consider the thermal resistance from junction to case, which is less than 1.5 K/W per device, for proper heat dissipation planning.
Part Context
This part belongs to the KBPC series of single-phase bridge rectifiers from Diotec Semiconductor. The series covers various voltage ratings ranging from 100 V to 1600 V. The KBPC3506FP specifically addresses applications requiring 600 V blocking capability with a 35 A current handling capacity.
Replacement Considerations
Cross-reference with other manufacturers offering similar 35 A, 600 V bridge rectifiers in the KBPC package style. Verify terminal types, as FP denotes fast-on connections. Check if alternative parts meet the same UL recognition standards and thermal performance metrics.
