Product Detailed Parameters
- Description：BRIDGE RECT 1P 1KV 35A KBPC WP
- Series：-
- Mfr：Diotec Semiconductor
- Package：Box
- Diode Type：Single Phase
- Technology：Standard
- Voltage - Peak Reverse (Max)：1 kV
- Current - Average Rectified (Io)：35 A
- Voltage - Forward (Vf) (Max) @ If：1.1 V @ 17.5 A
- Current - Reverse Leakage @ Vr：10 µA @ 1000 V
- Operating Temperature：-50°C ~ 150°C (TJ)
- Mounting Type：Through Hole
- Package / Case：4-Square, KBPC WP
- Supplier Device Package：KBPC WP
- Grade：-
- Qualification：-
Download product information
Overview

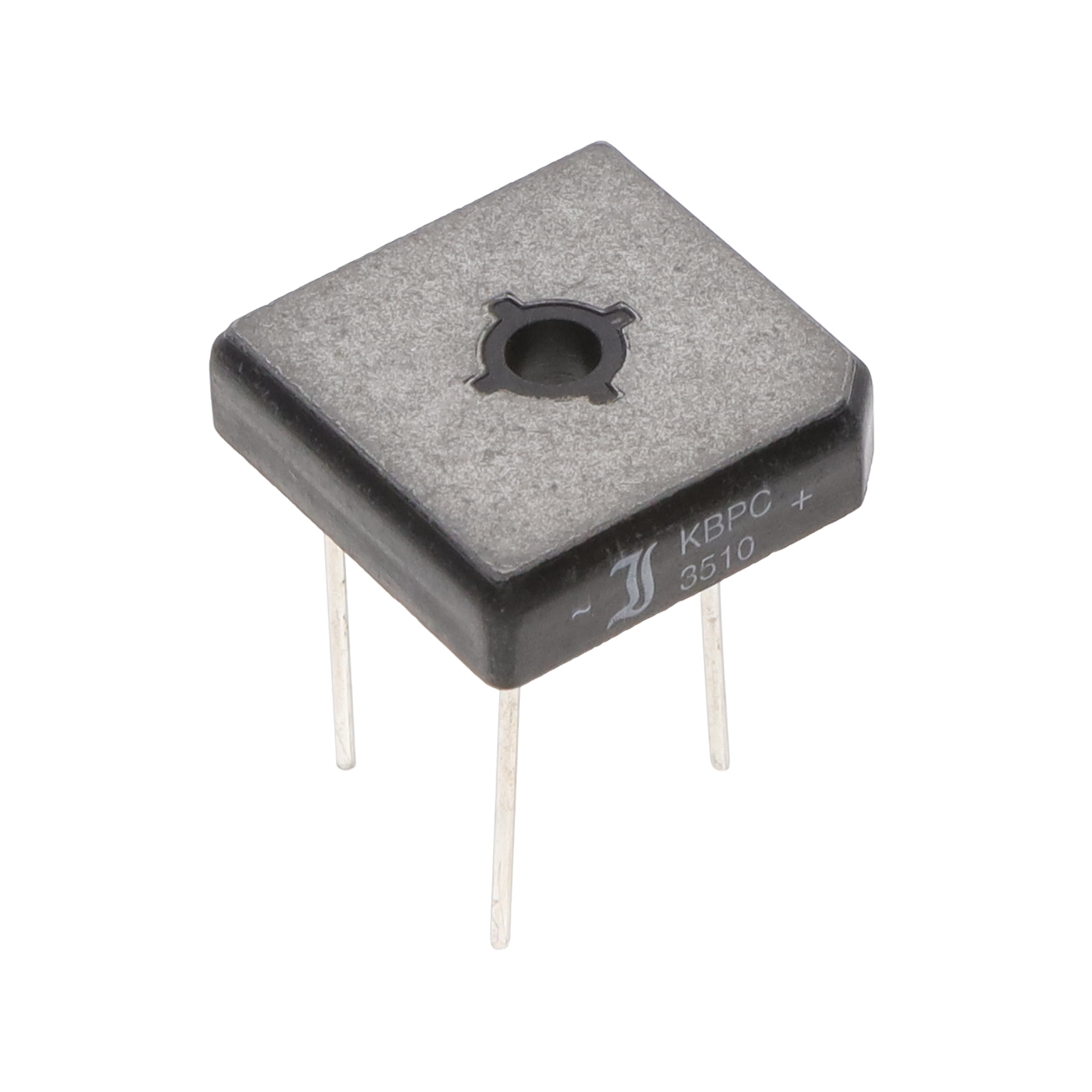

The KBPC3510WP is a single-phase diode bridge rectifier manufactured by Diotec Semiconductor. It features a maximum average forward rectified current (IFAV) of 35 A and a repetitive peak reverse voltage (VRRM) of 1000 V. The device utilizes wire terminals for mounting and incorporates an isolated aluminum baseplate within its plastic case. Key electrical parameters include a typical reverse recovery time (trr) of approximately 1500 ns, a peak forward surge current (IFSM) of 400 A at 60 Hz, and a maximum junction temperature rating of 150°C.
Feature Summary
- Four diodes integrated in a bridge configuration
- Plastic case construction with an isolated aluminum baseplate
- UL recognized component under File E175067
- Compliant with RoHS directives and REACH regulations
Applications
- 50/60 Hz mains rectification
- Commercial power supplies
- Industrial grade equipment
Procurement Notes
Verify the specific ordering suffix to confirm terminal type and compliance status. The WP suffix indicates wire terminals, distinct from FP fast-on variants. Confirm AEC-Q101 qualification if automotive standards are required, as standard versions are commercial grade. Ensure the supplier provides official datasheets matching the manufacturer's documentation for accurate technical validation.
Selection Notes
Select this component for applications requiring 35 A continuous current and 1000 V blocking voltage. The wire terminal design suits through-hole PCB assembly or direct wiring. Consider thermal management requirements, as the device relies on an isolated aluminum baseplate for heat dissipation. Verify that the operating environment remains within the specified -55°C to +150°C junction temperature range.
Part Context
This part belongs to the KBPC3500FP|WP series, which covers voltage ratings from 100 V to 1600 V. The KBPC3510WP specifically addresses the 1000 V category within this family. It shares mechanical dimensions and thermal characteristics with other variants in the series, differing primarily in voltage ratings and terminal configurations.
Replacement Considerations
Direct substitutes include KBPC3510FP for identical electrical performance with fast-on terminals. Other manufacturers offer equivalent 35 A, 1000 V bridge rectifiers in similar packages, but verify terminal compatibility and thermal resistance values before substitution.
