KC-F-24.000M-10-1010-2070-40

Crystals Overview

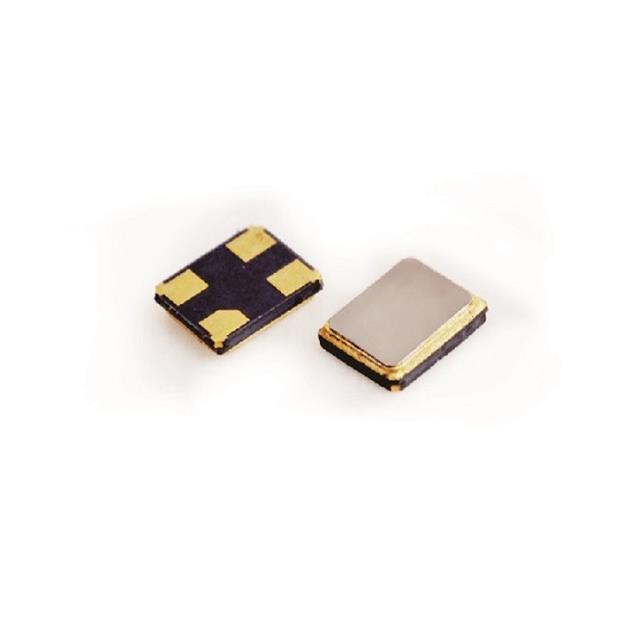

KC-F-24.000M-10-1010-2070-40 is a quartz crystal resonator manufactured by CEC Xtal. It operates at a fundamental frequency of 24 MHz with a load capacitance of 10 pF. The component exhibits a frequency tolerance and stability of ±10 ppm. It utilizes a 4-SMD, No Lead package configuration designed for surface mount technology applications.

Crystals Feature Summary

• Provides precise timing signals at 24 MHz with high frequency stability
• Utilizes a compact 4-SMD no lead package for automated assembly
• Maintains consistent performance within specified temperature ranges

Crystals Applications

• Microcontroller clock circuits
• Communication interface timing
• Digital signal processing systems

Crystals Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure compatibility with design requirements. Confirm that the 4-SMD no lead package dimensions align with the PCB footprint. Check for any recent updates to the RoHS compliance status or material declarations provided in the latest documentation before finalizing procurement.

Crystals Selection Notes

Select this component when a 24 MHz reference with ±10 ppm stability is required. Ensure the circuit design accommodates a 10 pF load capacitance. Verify that the operating environment falls within the specified thermal limits for the selected package type. Compare physical dimensions against available board space constraints.

Crystals Part Context

This part belongs to the KC-F series of quartz crystals from CEC Xtal. The series offers various frequencies and package options for standard surface mount applications. The manufacturer specializes in quartz-based timing devices, providing components for consumer electronics and industrial equipment requiring reliable frequency control.

Crystals Replacement Considerations

Direct substitutes must match the 24 MHz frequency, 10 pF load capacitance, ±10 ppm stability, and 4-SMD no lead package. Verify pinout compatibility and thermal characteristics. Cross-reference with other manufacturers offering equivalent SMD crystal specifications.
