KC-F-32.000M-10-1020-4085-60

Crystals Overview

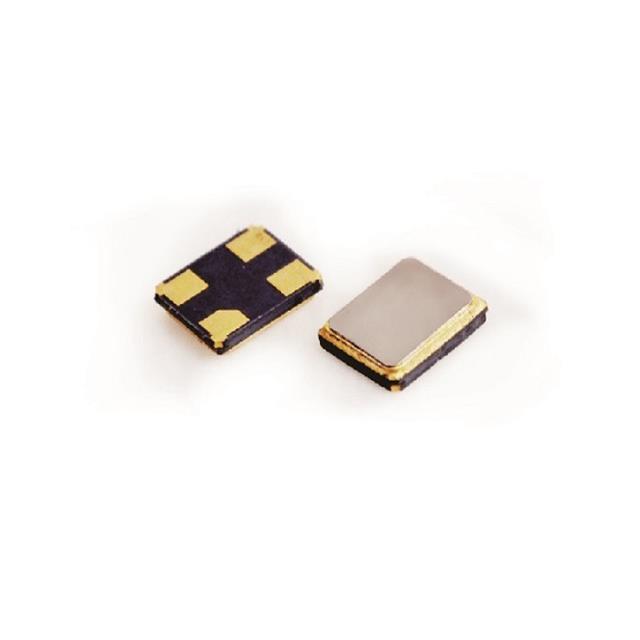

The KC-F-32.000M-10-1020-4085-60 is a surface-mount crystal resonator manufactured by CEC Xtal. It operates at a fundamental frequency of 32 MHz with a load capacitance of 10 pF and a frequency tolerance of ±10 ppm. The component utilizes a 4-SMD, no lead package configuration. It supports an extended operating temperature range from -40°C to +85°C, ensuring stability in demanding environments.

Crystals Feature Summary

• Provides precise frequency control with ±10 ppm tolerance for accurate electronic operations
• Maintains frequency consistency under various environmental conditions
• Designed for surface-mount assembly using a compact no-lead package

Crystals Applications

• Precision timing circuits requiring stable clock signals
• Electronic systems operating within extended temperature ranges
• Embedded devices needing reliable frequency reference sources

Crystals Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm technical specifications. Ensure compatibility with design requirements regarding load capacitance and frequency tolerance. Cross-reference datasheets for accurate electrical parameters before integration into production schedules.

Crystals Selection Notes

Select this component when applications demand high frequency accuracy and stability across wide temperature variations. Consider the 10 pF load capacitance requirement for circuit matching. Evaluate the surface-mount form factor for space-constrained designs requiring robust performance.

Crystals Part Context

This crystal resonator belongs to the frequency control and timing device category. It serves as a passive component essential for generating stable oscillation frequencies in electronic circuits. The product line focuses on providing reliable timing solutions for industrial and commercial applications.

Crystals Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify direct replacements through official manufacturer channels or authorized distributors to ensure parameter alignment.
