KC2520B3.68640C1GE00

Oscillators Overview

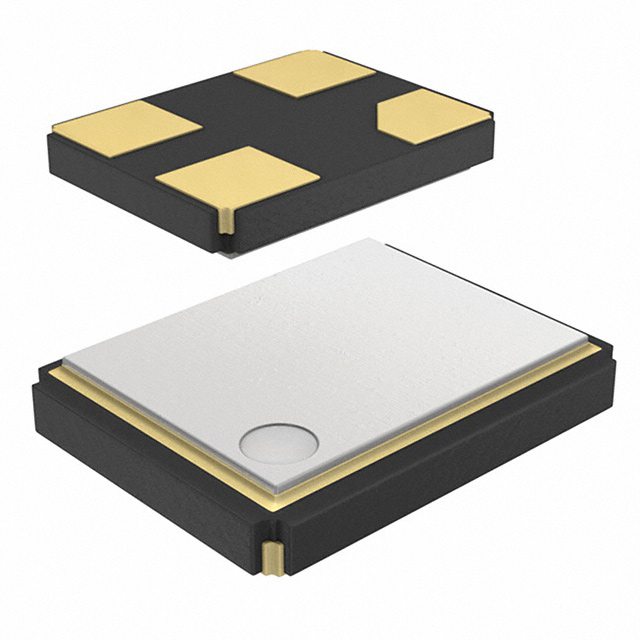

The KC2520B3.68640C1GE00 is a standard clock oscillator manufactured by KYOCERA AVX, operating at a frequency of 3.6864 MHz. It features CMOS output format and supports supply voltages ranging from 1.6V to 3.63V. The device exhibits a frequency stability of ±50 ppm across an operating temperature range of -40°C to +85°C. Housed in a compact 4-SMD, no-lead package with dimensions of 2.50mm x 2.00mm, it includes standby functionality for power management.

Oscillators Feature Summary

• Supports standby mode for power reduction
• Compact surface-mount design suitable for space-constrained applications
• Wide voltage operation capability

Oscillators Applications

• General purpose clock generation in embedded systems
• Data communication interfaces requiring precise timing
• Consumer electronics with low power requirements

Oscillators Procurement Notes

Verify the specific suffix codes against official datasheets to ensure correct output type and voltage compatibility. Confirm RoHS compliance status and moisture sensitivity level prior to integration. Check for any recent product change notices or lifecycle updates directly from the manufacturer to avoid obsolescence risks during procurement.

Oscillators Selection Notes

Select this component when a low-profile, cost-effective clock source is required for digital circuits. Ensure the system voltage aligns with the 1.6V to 3.63V operational range. Consider the ±50 ppm stability requirement against system timing tolerances. Evaluate the need for standby functionality if power efficiency is a critical design parameter.

Oscillators Part Context

This part belongs to the KC2520 series of surface mount crystal oscillators from KYOCERA AVX. The series offers various frequencies and output formats tailored for high-volume consumer and industrial electronics. The B-series typically denotes specific performance characteristics within the broader family, focusing on reliability and standard CMOS outputs.

Oscillators Replacement Considerations

Direct substitutes may include other KC2520 variants with matching frequency and output types, such as KC2520B3.68640C1GK00 if pinout and electrical specs align. Cross-reference with equivalent parts from other manufacturers only if form, fit, and function are verified identical.
