KC2520C26.0000C1LE00

Oscillators Overview

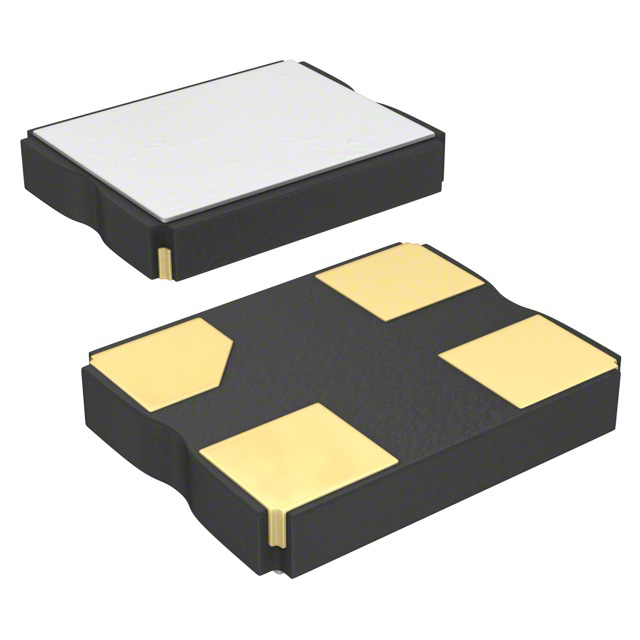

The KC2520C26.0000C1LE00 is a standard clock oscillator manufactured by KYOCERA AVX, designed for surface-mount applications. It operates at a frequency of 26 MHz with a stability of ±15 ppm and utilizes CMOS output format. The device functions within a supply voltage range of 1.71 V to 3.63 V, with a typical nominal voltage of 1.8 V. It features a compact 4-SMD, no-lead package measuring 2.50 mm x 2.00 mm x 0.70 mm. The component supports standby (power down) functionality and operates reliably across an extended temperature range from -40°C to +85°C.

Oscillators Feature Summary

• Supports standby mode for power reduction
• CMOS output signal format
• Compact surface-mount package

Oscillators Applications

• General purpose clock generation in electronic circuits
• Embedded systems requiring precise timing references
• Consumer electronics utilizing low-voltage logic interfaces

Oscillators Procurement Notes

Verify the current lifecycle status before procurement as this specific part number may be discontinued or subject to production changes. Confirm that the required operating temperature range and supply voltage specifications align with the target system design. Ensure compatibility with the PCB footprint dimensions and soldering profiles specified in the official datasheet to guarantee reliable assembly and long-term performance.

Oscillators Selection Notes

Select this component when a 26 MHz CMOS clock signal is required in a space-constrained environment. The ±15 ppm stability suits applications tolerant of moderate frequency variations. Consider the 1.8 V nominal supply requirement and ensure the system voltage remains within the specified operational limits. Verify that the standby feature meets power management requirements if present in the design.

Oscillators Part Context

This oscillator belongs to the KC2520C-C1 series, which provides standard clock signals in a small form factor. The series is characterized by its suitability for general-purpose timing applications where size and low power consumption are priorities. The KC2520C variant specifically denotes the CMOS output type and associated electrical characteristics defined by the manufacturer.

Oscillators Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's official obsolescence notices or cross-reference guides for potential alternatives if this component is discontinued.
