KC2520K12.2880C1GE00

Oscillators Overview

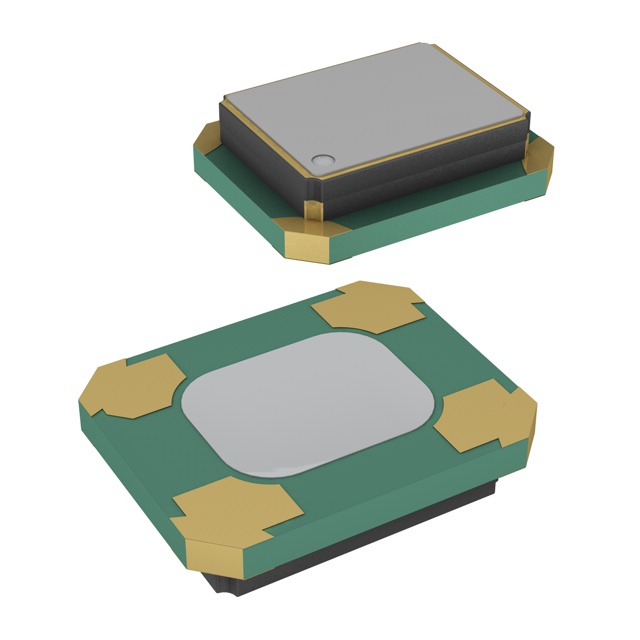

The KC2520K12.2880C1GE00 is a standard clock oscillator manufactured by KYOCERA AVX, operating at a frequency of 12.288 MHz with CMOS output format. It features a frequency stability of 50 PPM and supports a supply voltage range from 1.6 V to 3.6 V. The device utilizes a crystal base resonator and includes standby functionality for power management. It is housed in a compact 4-SMD, no-lead package measuring 2.5 mm x 2 mm x 0.8 mm. The component operates within a temperature range of -40°C to +85°C and has a load capacitance of 15 pF.

Oscillators Feature Summary

• CMOS output signal generation for digital logic interfacing
• Integrated standby mode for active power consumption reduction
• Compact surface-mount design suitable for space-constrained layouts

Oscillators Applications

• Digital signal processing systems requiring precise timing references
• Communication equipment utilizing standard clock frequencies
• Embedded control units needing low-power oscillation sources

Oscillators Procurement Notes

Verify the specific manufacturing date code against production records to ensure component authenticity. Confirm that the received parts match the exact suffix specifications for voltage and frequency tolerance. Check for physical damage to the solder pads before integration into the assembly process.

Oscillators Selection Notes

This model is selected based on its specific 12.288 MHz frequency requirement and CMOS compatibility. Designers should consider the 50 PPM stability limit when evaluating system timing accuracy. The 1.6 V minimum supply voltage allows for operation in low-power battery-driven applications.

Oscillators Part Context

This component belongs to the KC2520K series of standard oscillators from KYOCERA AVX. The series provides various frequency options within a standardized 2.5 mm x 2 mm footprint. It serves as a timing reference source for electronic circuits requiring stable clock signals.

Oscillators Replacement Considerations

KC2520B12.2880C1GE00 is listed as an alias part number for this component.
