KC3225Z24.5760C1GXNH

Oscillators Overview

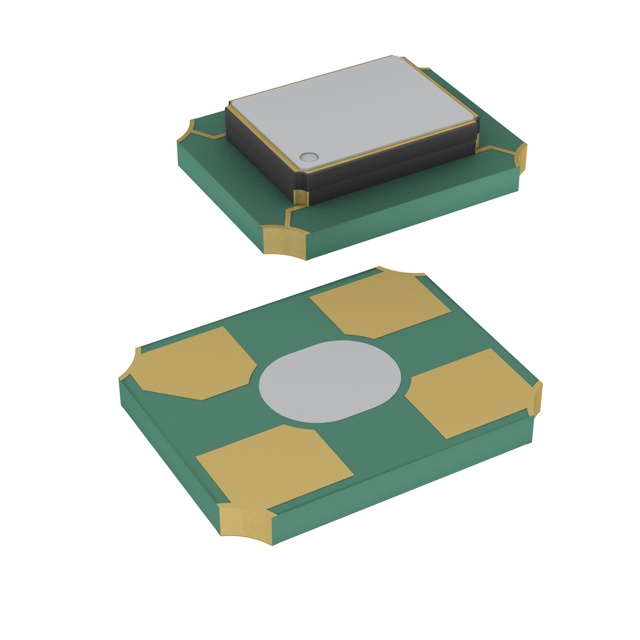

The KC3225Z24.5760C1GXNH is a standard CMOS crystal oscillator manufactured by KYOCERA AVX, operating at a frequency of 24.576 MHz. It features a compact 4-SMD, no-lead package with dimensions of 3.2 mm x 2.5 mm and a maximum height of 0.80 mm. The device supports multiple supply voltages including 1.8V, 2.5V, and 3.3V, and includes a standby (power down) function. Frequency stability is rated at ±50 ppm, with an operating temperature range spanning -20°C to +70°C.

Oscillators Feature Summary

• Supports multiple supply voltages for flexible system integration
• Includes standby mode functionality for power management
• Compact surface-mount package suitable for space-constrained designs

Oscillators Applications

• IoT devices requiring low power consumption
• Network equipment clock generation
• Embedded systems needing precise timing signals

Oscillators Procurement Notes

Verify the specific suffix GXNH against official datasheets to confirm voltage and temperature ratings. Ensure compatibility with target supply voltages and thermal requirements before procurement. Cross-reference part numbers with authorized distributors to avoid counterfeit components.

Oscillators Selection Notes

Select this component when a 24.576 MHz CMOS output is required in a small form factor. Consider the ±50 ppm stability and limited temperature range compared to industrial grade alternatives. Evaluate power consumption in active and standby modes relative to system battery life requirements.

Oscillators Part Context

This oscillator belongs to the Z Series from KYOCERA AVX, designed for various design requirements ranging from IoT devices to network equipment. The series emphasizes compact size and low power consumption, making it suitable for modern portable and embedded electronics applications.

Oscillators Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer resources for direct replacements or equivalent specifications.
